  • Ecospot
    Design: Roy Fleetwood

  • Railway Bridge Eskilstuna, Sweden
    ÅF Lighting, Stockholm, Photo: Sten Jansin

    ×

    8 981 066 049

    Ecospot

    Housing colour

    silver grey
    black
    white

    Colour temperature

    4000 K
    3000 K

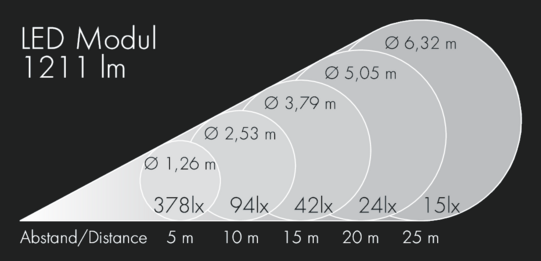

    Light distribution

    Specification
    Colour
    white
    Fixation
    with mounting bracket
    Light distribution
    medium wide beam
    Beam angle (FWHM)
    15°
    Light source
    LED 3000 K
    Luminous flux
    1211 lm
    Power
    19 W
    Efficiency
    58 lm/W
    Control
    on / off
    Color Rendering Index cri
    80 80
    Colour tolerance
    max 2 SDCM
    Service life
    L: 80, B:20
    Download
    Add accessories to your data sheet with a click.

    129 0 500 960 | white

    Wall arm 250 mm aluminum, polyester powder coated, for the illumination of advertising surfaces, signs and facades, with internal cable passage

    129 0 502 960 | white

    Earth spike stainless steel, for use in landscaped areas

    128 0 760 960 | white

    pole mount adapter aluminum, polyester powder coated, stainless steel strap, for mounting on poles Ø 60 – 120 mm

    129 0 499 960 | white

    Cowl stainless steel, to reduce lateral glare, for retro fitting, not in combination with other accessories

    129 0 602 960 | white

    Carrier frame with honeycomb louvre with safety glass, to reduce lateral glare, only one accessory per luminaire, not in combination

    129 0 602 961 | white

    Carrier frame with safety glass, for colour filters, lenses and plastic film, for retro-fitting, only one accessory per luminaire, not in combination
    Download data sheet

    Ecospot is a LED floodlight series with extremely narrow beam light distribution and very little light spill. The floodlights are available in two sizes – Ecospot Mini for highlighting architectural details,  Ecospot for accent lighting over longer distances.

    Preselection
    Light source
    Colour
    Light distribution
    Colour temperature
    Control
    Power
    Luminous flux
    Modification

    72 Products
    •   Part number Description Colour Light distribution Light source Luminous flux Power
    • 8 980 055 0198 980 055 019Ecospot Minisilver greynarrow beam 4°LED 4000 K157 lm3 Won / off
    • 8 980 055 0298 980 055 029Ecospot Minisilver greylinear vertical 24° / 6°LED 4000 K153 lm3 Won / off
    • 8 980 055 0398 980 055 039Ecospot Minisilver greylinear horizontal 6° / 24°LED 4000 K153 lm3 Won / off
    • 8 980 055 0498 980 055 049Ecospot Minisilver greymedium wide beam 13°LED 4000 K155 lm3 Won / off
    • 8 980 056 0198 980 056 019Ecospot Minisilver greynarrow beam 4°LED 3000 K137 lm3 Won / off
    • 8 980 056 0298 980 056 029Ecospot Minisilver greylinear vertical 24° / 6°LED 3000 K142 lm3 Won / off
    • 8 980 056 0398 980 056 039Ecospot Minisilver greylinear horizontal 6° / 24°LED 3000 K144 lm3 Won / off
    • 8 980 056 0498 980 056 049Ecospot Minisilver greymedium wide beam 13°LED 3000 K142 lm3 Won / off
    • 8 980 045 0198 980 045 019Ecospot Miniblacknarrow beam 4°LED 4000 K157 lm3 Won / off
    • 8 980 045 0298 980 045 029Ecospot Miniblacklinear vertical 24° / 6°LED 4000 K153 lm3 Won / off
    • 8 980 045 0398 980 045 039Ecospot Miniblacklinear horizontal 6° / 24°LED 4000 K153 lm3 Won / off
    • 8 980 045 0498 980 045 049Ecospot Miniblackmedium wide beam 13°LED 4000 K155 lm3 Won / off
    • 8 980 046 0198 980 046 019Ecospot Miniblacknarrow beam 4°LED 3000 K137 lm3 Won / off
    • 8 980 046 0298 980 046 029Ecospot Miniblacklinear vertical 24° / 6°LED 3000 K142 lm3 Won / off
    • 8 980 046 0398 980 046 039Ecospot Miniblacklinear horizontal 6° / 24°LED 3000 K144 lm3 Won / off
    • 8 980 046 0498 980 046 049Ecospot Miniblackmedium wide beam 13°LED 3000 K142 lm3 Won / off
    • 8 980 065 0198 980 065 019Ecospot Miniwhitenarrow beam 4°LED 4000 K157 lm3 Won / off
    • 8 980 065 0298 980 065 029Ecospot Miniwhitelinear vertical 24° / 6°LED 4000 K153 lm3 Won / off
    • 8 980 065 0398 980 065 039Ecospot Miniwhitelinear horizontal 6° / 24°LED 4000 K153 lm3 Won / off
    • 8 980 065 0498 980 065 049Ecospot Miniwhitemedium wide beam 13°LED 4000 K155 lm3 Won / off
    • 8 980 066 0198 980 066 019Ecospot Miniwhitenarrow beam 4°LED 3000 K137 lm3 Won / off
    • 8 980 066 0298 980 066 029Ecospot Miniwhitelinear vertical 24° / 6°LED 3000 K142 lm3 Won / off
    • 8 980 066 0398 980 066 039Ecospot Miniwhitelinear horizontal 6° / 24°LED 3000 K144 lm3 Won / off
    • 8 980 066 0498 980 066 049Ecospot Miniwhitemedium wide beam 13°LED 3000 K142 lm3 Won / off
    • 8 981 055 0198 981 055 019Ecospotsilver greynarrow beam 6°LED 4000 K1275 lm19 Won / off
    • 8 981 055 0298 981 055 029Ecospotsilver greylinear vertical 32° / 9°LED 4000 K1275 lm19 Won / off
    • 8 981 055 0398 981 055 039Ecospotsilver greylinear horizontal 9° / 32°LED 4000 K1275 lm19 Won / off
    • 8 981 055 0498 981 055 049Ecospotsilver greymedium wide beam 15°LED 4000 K1275 lm19 Won / off
    • 8 981 055 5198 981 055 519Ecospot
      Version tmax. 50°C      silver greynarrow beam 6°LED 4000 K1029 lm15 Won / off
    • 8 981 055 5298 981 055 529Ecospot
      Version tmax. 50°C      silver greylinear vertical 32° / 9°LED 4000 K1029 lm15 Won / off
    • 8 981 055 5398 981 055 539Ecospot
      Version tmax. 50°C      silver greylinear horizontal 9° / 32°LED 4000 K1029 lm15 Won / off
    • 8 981 055 5498 981 055 549Ecospot
      Version tmax. 50°C      silver greymedium wide beam 15°LED 4000 K1029 lm15 Won / off
    • 8 981 056 0198 981 056 019Ecospotsilver greynarrow beam 6°LED 3000 K1211 lm19 Won / off
    • 8 981 056 0298 981 056 029Ecospotsilver greylinear vertical 32° / 9°LED 3000 K1211 lm19 Won / off
    • 8 981 056 0398 981 056 039Ecospotsilver greylinear horizontal 9° / 32°LED 3000 K1211 lm19 Won / off
    • 8 981 056 0498 981 056 049Ecospotsilver greymedium wide beam 15°LED 3000 K1211 lm19 Won / off
    • 8 981 056 5198 981 056 519Ecospot
      Version tmax. 50°C      silver greynarrow beam 6°LED 3000 K980 lm15 Won / off
    • 8 981 056 5298 981 056 529Ecospot
      Version tmax. 50°C      silver greylinear vertical 32° / 9°LED 3000 K980 lm15 Won / off
    • 8 981 056 5398 981 056 539Ecospot
      Version tmax. 50°C      silver greylinear horizontal 9° / 32°LED 3000 K980 lm15 Won / off
    • 8 981 056 5498 981 056 549Ecospot
      Version tmax. 50°C      silver greymedium wide beam 15°LED 3000 K980 lm15 Won / off
    • 8 981 045 0198 981 045 019Ecospotblacknarrow beam 6°LED 4000 K1275 lm19 Won / off
    • 8 981 045 0298 981 045 029Ecospotblacklinear vertical 32° / 9°LED 4000 K1275 lm19 Won / off
    • 8 981 045 0398 981 045 039Ecospotblacklinear horizontal 9° / 32°LED 4000 K1275 lm19 Won / off
    • 8 981 045 0498 981 045 049Ecospotblackmedium wide beam 15°LED 4000 K1275 lm19 Won / off
    • 8 981 045 5198 981 045 519Ecospot
      Version tmax. 50°C      blacknarrow beam 6°LED 4000 K1029 lm15 Won / off
    • 8 981 045 5298 981 045 529Ecospot
      Version tmax. 50°C      blacklinear vertical 32° / 9°LED 4000 K1029 lm15 Won / off
    • 8 981 045 5398 981 045 539Ecospot
      Version tmax. 50°C      blacklinear horizontal 9° / 32°LED 4000 K1029 lm15 Won / off
    • 8 981 045 5498 981 045 549Ecospot
      Version tmax. 50°C      blackmedium wide beam 15°LED 4000 K1029 lm15 Won / off
    • 8 981 046 0198 981 046 019Ecospotblacknarrow beam 6°LED 3000 K1211 lm19 Won / off
    • 8 981 046 0298 981 046 029Ecospotblacklinear vertical 32° / 9°LED 3000 K1211 lm19 Won / off
    • 8 981 046 0398 981 046 039Ecospotblacklinear horizontal 9° / 32°LED 3000 K1211 lm19 Won / off
    • 8 981 046 0498 981 046 049Ecospotblackmedium wide beam 15°LED 3000 K1211 lm19 Won / off
    • 8 981 046 5198 981 046 519Ecospot
      Version tmax. 50°C      blacknarrow beam 6°LED 3000 K980 lm15 Won / off
    • 8 981 046 5298 981 046 529Ecospot
      Version tmax. 50°C      blacklinear vertical 32° / 9°LED 3000 K980 lm15 Won / off
    • 8 981 046 5398 981 046 539Ecospot
      Version tmax. 50°C      blacklinear horizontal 9° / 32°LED 3000 K980 lm15 Won / off
    • 8 981 046 5498 981 046 549Ecospot
      Version tmax. 50°C      blackmedium wide beam 15°LED 3000 K980 lm15 Won / off
    • 8 981 065 0198 981 065 019Ecospotwhitenarrow beam 6°LED 4000 K1275 lm19 Won / off
    • 8 981 065 0298 981 065 029Ecospotwhitelinear vertical 32° / 9°LED 4000 K1275 lm19 Won / off
    • 8 981 065 0398 981 065 039Ecospotwhitelinear horizontal 9° / 32°LED 4000 K1275 lm19 Won / off
    • 8 981 065 0498 981 065 049Ecospotwhitemedium wide beam 15°LED 4000 K1275 lm19 Won / off
    • 8 981 065 5198 981 065 519Ecospot
      Version tmax. 50°C      whitenarrow beam 6°LED 4000 K1029 lm15 Won / off
    • 8 981 065 5298 981 065 529Ecospot
      Version tmax. 50°C      whitelinear vertical 32° / 9°LED 4000 K1029 lm15 Won / off
    • 8 981 065 5398 981 065 539Ecospot
      Version tmax. 50°C      whitelinear horizontal 9° / 32°LED 4000 K1029 lm15 Won / off
    • 8 981 065 5498 981 065 549Ecospot
      Version tmax. 50°C      whitemedium wide beam 15°LED 4000 K1029 lm15 Won / off
    • 8 981 066 0198 981 066 019Ecospotwhitenarrow beam 6°LED 3000 K1211 lm19 Won / off
    • 8 981 066 0298 981 066 029Ecospotwhitelinear vertical 32° / 9°LED 3000 K1211 lm19 Won / off
    • 8 981 066 0398 981 066 039Ecospotwhitelinear horizontal 9° / 32°LED 3000 K1211 lm19 Won / off
    • 8 981 066 0498 981 066 049Ecospotwhitemedium wide beam 15°LED 3000 K1211 lm19 Won / off
    • 8 981 066 5198 981 066 519Ecospot
      Version tmax. 50°C      whitenarrow beam 6°LED 3000 K980 lm15 Won / off
    • 8 981 066 5298 981 066 529Ecospot
      Version tmax. 50°C      whitelinear vertical 32° / 9°LED 3000 K980 lm15 Won / off
    • 8 981 066 5398 981 066 539Ecospot
      Version tmax. 50°C      whitelinear horizontal 9° / 32°LED 3000 K980 lm15 Won / off
    • 8 981 066 5498 981 066 549Ecospot
      Version tmax. 50°C      whitemedium wide beam 15°LED 3000 K980 lm15 Won / off
