  • Expolux

    ×

    8 990 765 009

    Expolux

    Housing colour

    silver grey
    black
    white

    Fixation

    with joint
    with wall arm

    Colour temperature

    4000 K
    3000 K

    Light distribution

    Control

    on / off
    DALI
    1-10V
    Specification
    Colour
    white
    Fixation
    with wall arm
    Light distribution
    sign luminaire

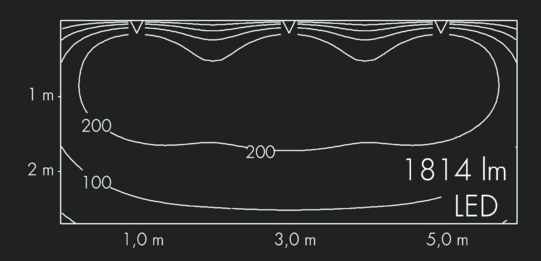

    Beam angle (FWHM)
    15° / 41°
    Light source
    LED 4000 K
    Luminous flux
    1814 lm
    Power
    18 W
    Efficiency
    103 lm/W
    Control
    on / off
    Color Rendering Index cri
    CRI > 80 > 80
    Colour tolerance
    max 2 SDCM
    Service life
    L: 80, B:10
    Download

    The Expolux range of luminaires illuminates signs or advertising surfaces to a high level of uniformity. The light emitted by an LED module is directed asymmetrically by a special lens onto the
    surface. The low profile housing is very compact and only needs to be tilted very little thanks to the asymmetrical distribution lens. Together with the short arm, the overall impression is a very discreet luminaire.

    Preselection
    Light source
    Fixation
    Colour
    Light distribution
    Colour temperature
    Control

    72 Products
    •   Part number Description Colour Light distribution Light source Luminous flux Power
    • 8 990 155 0198 990 155 019Expoluxsilver greywall washer 20° / 82°LED 4000 K1614 lm18 Won / off
    • 8 990 155 0898 990 155 089Expoluxsilver greyasymmetrical 43° / 70°LED 4000 K1629 lm18 Won / off
    • 8 990 155 1198 990 155 119Expoluxsilver greywall washer 20° / 82°LED 4000 K1614 lm18 WDALI
    • 8 990 155 1898 990 155 189Expoluxsilver greyasymmetrical 43° / 70°LED 4000 K1629 lm18 WDALI
    • 8 990 155 2198 990 155 219Expoluxsilver greywall washer 20° / 82°LED 4000 K1614 lm18 W1-10V
    • 8 990 155 2898 990 155 289Expoluxsilver greyasymmetrical 43° / 70°LED 4000 K1629 lm18 W1-10V
    • 8 990 156 0198 990 156 019Expoluxsilver greywall washer 20° / 82°LED 3000 K1533 lm18 Won / off
    • 8 990 156 0898 990 156 089Expoluxsilver greyasymmetrical 43° / 70°LED 3000 K1551 lm18 Won / off
    • 8 990 156 1198 990 156 119Expoluxsilver greywall washer 20° / 82°LED 3000 K1533 lm18 WDALI
    • 8 990 156 1898 990 156 189Expoluxsilver greyasymmetrical 43° / 70°LED 3000 K1551 lm18 WDALI
    • 8 990 156 2198 990 156 219Expoluxsilver greywall washer 20° / 82°LED 3000 K1533 lm18 W1-10V
    • 8 990 156 2898 990 156 289Expoluxsilver greyasymmetrical 43° / 70°LED 3000 K1551 lm18 W1-10V
    • 8 990 145 0198 990 145 019Expoluxblackwall washer 20° / 82°LED 4000 K1614 lm18 Won / off
    • 8 990 145 0898 990 145 089Expoluxblackasymmetrical 43° / 70°LED 4000 K1629 lm18 Won / off
    • 8 990 145 1198 990 145 119Expoluxblackwall washer 20° / 82°LED 4000 K1614 lm18 WDALI
    • 8 990 145 1898 990 145 189Expoluxblackasymmetrical 43° / 70°LED 4000 K1629 lm18 WDALI
    • 8 990 145 2198 990 145 219Expoluxblackwall washer 20° / 82°LED 4000 K1614 lm18 W1-10V
    • 8 990 145 2898 990 145 289Expoluxblackasymmetrical 43° / 70°LED 4000 K1629 lm18 W1-10V
    • 8 990 146 0198 990 146 019Expoluxblackwall washer 20° / 82°LED 3000 K1533 lm18 Won / off
    • 8 990 146 0898 990 146 089Expoluxblackasymmetrical 43° / 70°LED 3000 K1551 lm18 Won / off
    • 8 990 146 1198 990 146 119Expoluxblackwall washer 20° / 82°LED 3000 K1533 lm18 WDALI
    • 8 990 146 1898 990 146 189Expoluxblackasymmetrical 43° / 70°LED 3000 K1551 lm18 WDALI
    • 8 990 146 2198 990 146 219Expoluxblackwall washer 20° / 82°LED 3000 K1533 lm18 W1-10V
    • 8 990 146 2898 990 146 289Expoluxblackasymmetrical 43° / 70°LED 3000 K1551 lm18 W1-10V
    • 8 990 165 0198 990 165 019Expoluxwhitewall washer 20° / 82°LED 4000 K1614 lm18 Won / off
    • 8 990 165 0898 990 165 089Expoluxwhiteasymmetrical 43° / 70°LED 4000 K1629 lm18 Won / off
    • 8 990 165 1198 990 165 119Expoluxwhitewall washer 20° / 82°LED 4000 K1614 lm18 WDALI
    • 8 990 165 1898 990 165 189Expoluxwhiteasymmetrical 43° / 70°LED 4000 K1629 lm18 WDALI
    • 8 990 165 2198 990 165 219Expoluxwhitewall washer 20° / 82°LED 4000 K1614 lm18 W1-10V
    • 8 990 165 2898 990 165 289Expoluxwhiteasymmetrical 43° / 70°LED 4000 K1629 lm18 W1-10V
    • 8 990 166 0198 990 166 019Expoluxwhitewall washer 20° / 82°LED 3000 K1533 lm18 Won / off
    • 8 990 166 0898 990 166 089Expoluxwhiteasymmetrical 43° / 70°LED 3000 K1551 lm18 Won / off
    • 8 990 166 1198 990 166 119Expoluxwhitewall washer 20° / 82°LED 3000 K1533 lm18 WDALI
    • 8 990 166 1898 990 166 189Expoluxwhiteasymmetrical 43° / 70°LED 3000 K1551 lm18 WDALI
    • 8 990 166 2198 990 166 219Expoluxwhitewall washer 20° / 82°LED 3000 K1533 lm18 W1-10V
    • 8 990 166 2898 990 166 289Expoluxwhiteasymmetrical 43° / 70°LED 3000 K1551 lm18 W1-10V
    • 8 990 755 0098 990 755 009Expoluxsilver greysign luminaire 15° / 41°LED 4000 K1814 lm18 Won / off
    • 8 990 755 0198 990 755 019Expoluxsilver greywall washer 20° / 82°LED 4000 K1614 lm18 Won / off
    • 8 990 755 1098 990 755 109Expoluxsilver greysign luminaire 15° / 41°LED 4000 K1814 lm18 WDALI
    • 8 990 755 1198 990 755 119Expoluxsilver greywall washer 20° / 82°LED 4000 K1614 lm18 WDALI
    • 8 990 755 2098 990 755 209Expoluxsilver greysign luminaire 15° / 41°LED 4000 K1814 lm18 W1-10V
    • 8 990 755 2198 990 755 219Expoluxsilver greywall washer 20° / 82°LED 4000 K1614 lm18 W1-10V
    • 8 990 756 0098 990 756 009Expoluxsilver greysign luminaire 15° / 41°LED 3000 K1728 lm18 Won / off
    • 8 990 756 0198 990 756 019Expoluxsilver greywall washer 20° / 82°LED 3000 K1533 lm18 Won / off
    • 8 990 756 1098 990 756 109Expoluxsilver greysign luminaire 15° / 41°LED 3000 K1728 lm18 WDALI
    • 8 990 756 1198 990 756 119Expoluxsilver greywall washer 20° / 82°LED 3000 K1533 lm18 WDALI
    • 8 990 756 2098 990 756 209Expoluxsilver greysign luminaire 15° / 41°LED 3000 K1728 lm18 W1-10V
    • 8 990 756 2198 990 756 219Expoluxsilver greywall washer 20° / 82°LED 3000 K1533 lm18 W1-10V
    • 8 990 745 0098 990 745 009Expoluxblacksign luminaire 15° / 41°LED 4000 K1814 lm18 Won / off
    • 8 990 745 0198 990 745 019Expoluxblackwall washer 20° / 82°LED 4000 K1614 lm18 Won / off
    • 8 990 745 1098 990 745 109Expoluxblacksign luminaire 15° / 41°LED 4000 K1814 lm18 WDALI
    • 8 990 745 1198 990 745 119Expoluxblackwall washer 20° / 82°LED 4000 K1614 lm18 WDALI
    • 8 990 745 2098 990 745 209Expoluxblacksign luminaire 15° / 41°LED 4000 K1814 lm18 W1-10V
    • 8 990 745 2198 990 745 219Expoluxblackwall washer 20° / 82°LED 4000 K1614 lm18 W1-10V
    • 8 990 746 0098 990 746 009Expoluxblacksign luminaire 15° / 41°LED 3000 K1728 lm18 Won / off
    • 8 990 746 0198 990 746 019Expoluxblackwall washer 20° / 82°LED 3000 K1533 lm18 Won / off
    • 8 990 746 1098 990 746 109Expoluxblacksign luminaire 15° / 41°LED 3000 K1728 lm18 WDALI
    • 8 990 746 1198 990 746 119Expoluxblackwall washer 20° / 82°LED 3000 K1533 lm18 WDALI
    • 8 990 746 2098 990 746 209Expoluxblacksign luminaire 15° / 41°LED 3000 K1728 lm18 W1-10V
    • 8 990 746 2198 990 746 219Expoluxblackwall washer 20° / 82°LED 3000 K1533 lm18 W1-10V
    • 8 990 765 0098 990 765 009Expoluxwhitesign luminaire 15° / 41°LED 4000 K1814 lm18 Won / off
    • 8 990 765 0198 990 765 019Expoluxwhitewall washer 20° / 82°LED 4000 K1614 lm18 Won / off
    • 8 990 765 1098 990 765 109Expoluxwhitesign luminaire 15° / 41°LED 4000 K1814 lm18 WDALI
    • 8 990 765 1198 990 765 119Expoluxwhitewall washer 20° / 82°LED 4000 K1614 lm18 WDALI
    • 8 990 765 2098 990 765 209Expoluxwhitesign luminaire 15° / 41°LED 4000 K1814 lm18 W1-10V
    • 8 990 765 2198 990 765 219Expoluxwhitewall washer 20° / 82°LED 4000 K1614 lm18 W1-10V
    • 8 990 766 0098 990 766 009Expoluxwhitesign luminaire 15° / 41°LED 3000 K1728 lm18 Won / off
    • 8 990 766 0198 990 766 019Expoluxwhitewall washer 20° / 82°LED 3000 K1533 lm18 Won / off
    • 8 990 766 1098 990 766 109Expoluxwhitesign luminaire 15° / 41°LED 3000 K1728 lm18 WDALI
    • 8 990 766 1198 990 766 119Expoluxwhitewall washer 20° / 82°LED 3000 K1533 lm18 WDALI
    • 8 990 766 2098 990 766 209Expoluxwhitesign luminaire 15° / 41°LED 3000 K1728 lm18 W1-10V
    • 8 990 766 2198 990 766 219Expoluxwhitewall washer 20° / 82°LED 3000 K1533 lm18 W1-10V
