  • Gemini

    ×

    8 338 445 209

    Gemini 2

    Housing colour

    silver grey
    black
    white

    Colour temperature

    3000 K
    4000 K

    Beam up

    Beam down

    Control

    on / off
    DALI
    1-10V
    Specification
    Colour
    black
    Fixation
    with wall box

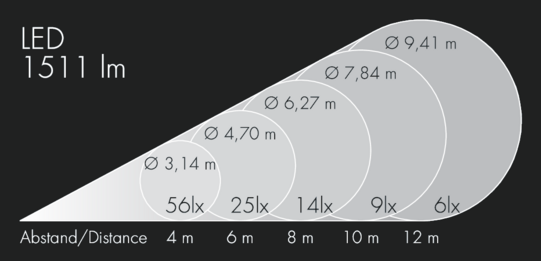

    Light distribution
    narrow beam up, wide beam down
    Beam angle (FWHM)
    up 7° / down 45°
    Light source
    LED 4000 K
    Luminous flux
    1506 lm
    Power
    20 W
    Efficiency
    75 lm/W
    Control
    1-10V
    Color Rendering Index cri
    CRI > 80 > 80
    Colour tolerance
    max 2 SDCM
    Service life
    L: 90, B:10
    Download

    Gemini is a range of up/down wall luminaires. The LED optics are available in narrow or wide beam distribution and can be combined with one another. Thanks to their sleek design and compact dimensions, these luminaires lend themselves well to being integrated into modern or historical architecture. They produce interesting lighting effects while consuming very little energy.

    Preselection
    Light source
    Colour
    Beam up
    Beam down
    Colour temperature
    Control
    Power
    Luminous flux


    Also available as up- or downlight only

    114 Products
    •   Part number Description Colour Light distribution Light source Luminous flux Power
    • 8 337 151 0098 337 151 009Gemini 1silver greyup 7° / down 7°LED 3000 K324 lm5 Won / off
    • 8 337 152 0098 337 152 009Gemini 1silver greyup 7° / down 45°LED 3000 K313 lm5 Won / off
    • 8 337 141 0098 337 141 009Gemini 1blackup 7° / down 7°LED 3000 K324 lm5 Won / off
    • 8 337 142 0098 337 142 009Gemini 1blackup 7° / down 45°LED 3000 K313 lm5 Won / off
    • 8 337 161 0098 337 161 009Gemini 1whiteup 7° / down 7°LED 3000 K324 lm5 Won / off
    • 8 337 162 0098 337 162 009Gemini 1whiteup 7° / down 45°LED 3000 K313 lm5 Won / off
    • 8 337 252 0098 337 252 009Gemini 1silver greyup 45° / down 45°LED 3000 K313 lm5 Won / off
    • 8 337 241 0098 337 241 009Gemini 1blackup 45° / down 7°LED 3000 K315 lm5 Won / off
    • 8 337 242 0098 337 242 009Gemini 1blackup 45° / down 45°LED 3000 K313 lm5 Won / off
    • 8 337 262 0098 337 262 009Gemini 1whiteup 45° / down 45°LED 3000 K313 lm5 Won / off
    • 8 337 454 0098 337 454 009Gemini 1silver greyup 7° / down 7°LED 4000 K342 lm5 Won / off
    • 8 337 455 0098 337 455 009Gemini 1silver greyup 7° / down 45°LED 4000 K339 lm5 Won / off
    • 8 337 444 0098 337 444 009Gemini 1blackup 7° / down 7°LED 4000 K342 lm5 Won / off
    • 8 337 445 0098 337 445 009Gemini 1blackup 7° / down 45°LED 4000 K339 lm5 Won / off
    • 8 337 464 0098 337 464 009Gemini 1whiteup 7° / down 7°LED 4000 K342 lm5 Won / off
    • 8 337 465 0098 337 465 009Gemini 1whiteup 7° / down 45°LED 4000 K339 lm5 Won / off
    • 8 337 555 0098 337 555 009Gemini 1silver greyup 45° / up 45°LED 4000 K339 lm5 Won / off
    • 8 337 545 0098 337 545 009Gemini 1blackup 45° / up 45°LED 4000 K339 lm5 Won / off
    • 8 337 565 0098 337 565 009Gemini 1whiteup 45° / up 45°LED 4000 K339 lm5 Won / off
    • 8 338 151 0098 338 151 009Gemini 2silver greyup 7° / down 7°LED 3000 K1395 lm20 Won / off
    • 8 338 151 1098 338 151 109Gemini 2silver greyup 7° / down 7°LED 3000 K1395 lm20 WDALI
    • 8 338 151 2098 338 151 209Gemini 2silver greyup 7° / down 7°LED 3000 K1395 lm20 W1-10V
    • 8 338 152 0098 338 152 009Gemini 2silver greyup 7° / down 45°LED 3000 K1395 lm20 Won / off
    • 8 338 152 1098 338 152 109Gemini 2silver greyup 7° / down 45°LED 3000 K1395 lm20 WDALI
    • 8 338 152 2098 338 152 209Gemini 2silver greyup 7° / down 45°LED 3000 K1395 lm20 W1-10V
    • 8 338 158 0098 338 158 009Gemini 2silver greyup 7° / asymmetrical down°LED 3000 K1049 lm20 Won / off
    • 8 338 158 1098 338 158 109Gemini 2silver greyup 7° / asymmetrical down°LED 3000 K1049 lm20 WDALI
    • 8 338 158 2098 338 158 209Gemini 2silver greyup 7° / asymmetrical down°LED 3000 K1049 lm20 W1-10V
    • 8 338 141 0098 338 141 009Gemini 2blackup 7° / down 7°LED 3000 K1395 lm20 Won / off
    • 8 338 141 1098 338 141 109Gemini 2blackup 7° / down 7°LED 3000 K1395 lm20 WDALI
    • 8 338 141 2098 338 141 209Gemini 2blackup 7° / down 7°LED 3000 K1395 lm20 W1-10V
    • 8 338 142 0098 338 142 009Gemini 2blackup 7° / down 45°LED 3000 K1395 lm20 Won / off
    • 8 338 142 1098 338 142 109Gemini 2blackup 7° / down 45°LED 3000 K1395 lm20 WDALI
    • 8 338 142 2098 338 142 209Gemini 2blackup 7° / down 45°LED 3000 K1395 lm20 W1-10V
    • 8 338 148 0098 338 148 009Gemini 2blackup 7° / asymmetrical down°LED 3000 K1049 lm20 Won / off
    • 8 338 148 1098 338 148 109Gemini 2blackup 7° / asymmetrical down°LED 3000 K1049 lm20 WDALI
    • 8 338 148 2098 338 148 209Gemini 2blackup 7° / asymmetrical down°LED 3000 K1049 lm20 W1-10V
    • 8 338 161 0098 338 161 009Gemini 2whiteup 7° / down 7°LED 3000 K1395 lm20 Won / off
    • 8 338 161 1098 338 161 109Gemini 2whiteup 7° / down 7°LED 3000 K1395 lm20 WDALI
    • 8 338 161 2098 338 161 209Gemini 2whiteup 7° / down 7°LED 3000 K1395 lm20 W1-10V
    • 8 338 162 0098 338 162 009Gemini 2whiteup 7° / down 45°LED 3000 K1395 lm20 Won / off
    • 8 338 162 1098 338 162 109Gemini 2whiteup 7° / down 45°LED 3000 K1395 lm20 WDALI
    • 8 338 162 2098 338 162 209Gemini 2whiteup 7° / down 45°LED 3000 K1395 lm20 W1-10V
    • 8 338 168 0098 338 168 009Gemini 2whiteup 7° / asymmetrical down°LED 3000 K1049 lm20 Won / off
    • 8 338 168 1098 338 168 109Gemini 2whiteup 7° / asymmetrical down°LED 3000 K1049 lm20 WDALI
    • 8 338 168 2098 338 168 209Gemini 2whiteup 7° / asymmetrical down°LED 3000 K1049 lm20 W1-10V
    • 8 338 251 0098 338 251 009Gemini 2silver greyup 45° / down 7°LED 3000 K1425 lm20 Won / off
    • 8 338 252 0098 338 252 009Gemini 2silver greyup 45° / down 45°LED 3000 K1394 lm20 Won / off
    • 8 338 252 1098 338 252 109Gemini 2silver greyup 45° / down 45°LED 3000 K1394 lm20 WDALI
    • 8 338 252 2098 338 252 209Gemini 2silver greyup 45° / down 45°LED 3000 K1394 lm20 W1-10V
    • 8 338 258 0098 338 258 009Gemini 2silver greyup 45° / asymmetrical down°LED 3000 K870 lm20 Won / off
    • 8 338 258 1098 338 258 109Gemini 2silver greyup 45° / asymmetrical down°LED 3000 K870 lm20 WDALI
    • 8 338 258 2098 338 258 209Gemini 2silver greyup 45° / asymmetrical down°LED 3000 K870 lm20 W1-10V
    • 8 338 241 0098 338 241 009Gemini 2blackup 45° / down 7°LED 3000 K1425 lm20 Won / off
    • 8 338 242 0098 338 242 009Gemini 2blackup 45° / down 45°LED 3000 K1394 lm20 Won / off
    • 8 338 242 1098 338 242 109Gemini 2blackup 45° / down 45°LED 3000 K1394 lm20 WDALI
    • 8 338 242 2098 338 242 209Gemini 2blackup 45° / down 45°LED 3000 K1394 lm20 W1-10V
    • 8 338 248 0098 338 248 009Gemini 2blackup 45° / asymmetrical down°LED 3000 K870 lm20 Won / off
    • 8 338 248 1098 338 248 109Gemini 2blackup 45° / asymmetrical down°LED 3000 K870 lm20 WDALI
    • 8 338 248 2098 338 248 209Gemini 2blackup 45° / asymmetrical down°LED 3000 K870 lm20 W1-10V
    • 8 338 261 0098 338 261 009Gemini 2whiteup 45° / down 7°LED 3000 K1425 lm20 Won / off
    • 8 338 262 0098 338 262 009Gemini 2whiteup 45° / down 45°LED 3000 K1394 lm20 Won / off
    • 8 338 262 1098 338 262 109Gemini 2whiteup 45° / down 45°LED 3000 K1394 lm20 WDALI
    • 8 338 262 2098 338 262 209Gemini 2whiteup 45° / down 45°LED 3000 K1394 lm20 W1-10V
    • 8 338 268 0098 338 268 009Gemini 2whiteup 45° / asymmetrical down°LED 3000 K870 lm20 Won / off
    • 8 338 268 1098 338 268 109Gemini 2whiteup 45° / asymmetrical down°LED 3000 K870 lm20 WDALI
    • 8 338 268 2098 338 268 209Gemini 2whiteup 45° / asymmetrical down°LED 3000 K870 lm20 W1-10V
    • 8 338 454 0098 338 454 009Gemini 2silver greyup 7° / down 7°LED 4000 K1506 lm20 Won / off
    • 8 338 454 1098 338 454 109Gemini 2silver greyup 7° / down 7°LED 4000 K1506 lm20 WDALI
    • 8 338 454 2098 338 454 209Gemini 2silver greyup 7° / down 7°LED 4000 K1506 lm20 W1-10V
    • 8 338 455 0098 338 455 009Gemini 2silver greyup 7° / down 45°LED 4000 K1506 lm20 Won / off
    • 8 338 455 1098 338 455 109Gemini 2silver greyup 7° / down 45°LED 4000 K1506 lm20 WDALI
    • 8 338 455 2098 338 455 209Gemini 2silver greyup 7° / down 45°LED 4000 K1506 lm20 W1-10V
    • 8 338 458 0098 338 458 009Gemini 2silver greyup 7° / asymmetrical down°LED 4000 K1102 lm20 Won / off
    • 8 338 458 1098 338 458 109Gemini 2silver greyup 7° / asymmetrical down°LED 4000 K1102 lm20 WDALI
    • 8 338 458 2098 338 458 209Gemini 2silver greyup 7° / asymmetrical down°LED 4000 K1102 lm20 W1-10V
    • 8 338 444 0098 338 444 009Gemini 2blackup 7° / down 7°LED 4000 K1506 lm20 Won / off
    • 8 338 444 1098 338 444 109Gemini 2blackup 7° / down 7°LED 4000 K1506 lm20 WDALI
    • 8 338 444 2098 338 444 209Gemini 2blackup 7° / down 7°LED 4000 K1506 lm20 W1-10V
    • 8 338 445 0098 338 445 009Gemini 2blackup 7° / down 45°LED 4000 K1506 lm20 Won / off
    • 8 338 445 1098 338 445 109Gemini 2blackup 7° / down 45°LED 4000 K1506 lm20 WDALI
    • 8 338 445 2098 338 445 209Gemini 2blackup 7° / down 45°LED 4000 K1506 lm20 W1-10V
    • 8 338 448 0098 338 448 009Gemini 2blackup 7° / asymmetrical down°LED 4000 K1102 lm20 Won / off
    • 8 338 448 1098 338 448 109Gemini 2blackup 7° / asymmetrical down°LED 4000 K1102 lm20 WDALI
    • 8 338 448 2098 338 448 209Gemini 2blackup 7° / asymmetrical down°LED 4000 K1102 lm20 W1-10V
    • 8 338 464 0098 338 464 009Gemini 2whiteup 7° / down 7°LED 4000 K1506 lm20 Won / off
    • 8 338 464 1098 338 464 109Gemini 2whiteup 7° / down 7°LED 4000 K1506 lm20 WDALI
    • 8 338 464 2098 338 464 209Gemini 2whiteup 7° / down 7°LED 4000 K1506 lm20 W1-10V
    • 8 338 465 0098 338 465 009Gemini 2whiteup 7° / down 45°LED 4000 K1506 lm20 Won / off
    • 8 338 465 1098 338 465 109Gemini 2whiteup 7° / down 45°LED 4000 K1506 lm20 WDALI
    • 8 338 465 2098 338 465 209Gemini 2whiteup 7° / down 45°LED 4000 K1506 lm20 W1-10V
    • 8 338 468 0098 338 468 009Gemini 2whiteup 7° / asymmetrical down°LED 4000 K1102 lm20 Won / off
    • 8 338 468 1098 338 468 109Gemini 2whiteup 7° / asymmetrical down°LED 4000 K1102 lm20 WDALI
    • 8 338 468 2098 338 468 209Gemini 2whiteup 7° / asymmetrical down°LED 4000 K1102 lm20 W1-10V
    • 8 338 555 0098 338 555 009Gemini 2silver greyup 45° / down 45°LED 4000 K1505 lm20 Won / off
    • 8 338 555 1098 338 555 109Gemini 2silver greyup 45° / down 45°LED 4000 K1505 lm20 WDALI
    • 8 338 555 2098 338 555 209Gemini 2silver greyup 45° / down 45°LED 4000 K1505 lm20 W1-10V
    • 8 338 558 0098 338 558 009Gemini 2silver greyup 45° / asymmetrical down°LED 4000 K913 lm20 Won / off
    • 8 338 558 1098 338 558 109Gemini 2silver greyup 45° / asymmetrical down°LED 4000 K913 lm20 WDALI
    • 8 338 558 2098 338 558 209Gemini 2silver greyup 45° / asymmetrical down°LED 4000 K913 lm20 W1-10V
    • 8 338 544 0098 338 544 009Gemini 2black45° / 7°LED 4000 K1496 lm20 Won / off
    • 8 338 545 0098 338 545 009Gemini 2blackup 45° / down 45°LED 4000 K1505 lm20 Won / off
    • 8 338 545 1098 338 545 109Gemini 2blackup 45° / down 45°LED 4000 K1505 lm20 WDALI
    • 8 338 545 2098 338 545 209Gemini 2blackup 45° / down 45°LED 4000 K1505 lm20 W1-10V
    • 8 338 548 0098 338 548 009Gemini 2blackup 45° / asymmetrical down°LED 4000 K913 lm20 Won / off
    • 8 338 548 1098 338 548 109Gemini 2blackup 45° / asymmetrical down°LED 4000 K913 lm20 WDALI
    • 8 338 548 2098 338 548 209Gemini 2blackup 45° / asymmetrical down°LED 4000 K913 lm20 W1-10V
    • 8 338 564 0098 338 564 009Gemini 2white45° / 7°LED 4000 K1496 lm20 Won / off
    • 8 338 565 0098 338 565 009Gemini 2whiteup 45° / down 45°LED 4000 K1505 lm20 Won / off
    • 8 338 565 1098 338 565 109Gemini 2whiteup 45° / down 45°LED 4000 K1505 lm20 WDALI
    • 8 338 565 2098 338 565 209Gemini 2whiteup 45° / down 45°LED 4000 K1505 lm20 W1-10V
    • 8 338 568 0098 338 568 009Gemini 2whiteup 45° / asymmetrical down°LED 4000 K913 lm20 Won / off
    • 8 338 568 1098 338 568 109Gemini 2whiteup 45° / asymmetrical down°LED 4000 K913 lm20 WDALI
    • 8 338 568 2098 338 568 209Gemini 2whiteup 45° / asymmetrical down°LED 4000 K913 lm20 W1-10V
