  • Highrise

  • Amplifier, Berlin Rosenspiess, Berlin

    ×

    8 365 655 199

    Highrise

    Housing colour

    silver grey
    black
    white

    Colour temperature

    4000 K
    3000 K

    Beam up

    Beam down

    Control

    on / off
    DALI
    Specification
    Colour
    silver grey
    Fixation
    wall box

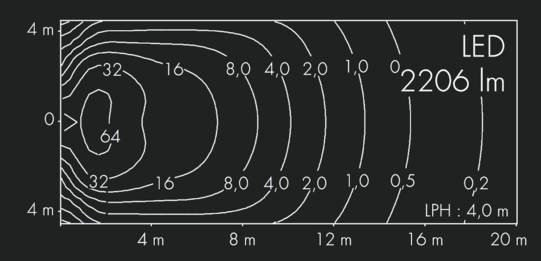

    Light distribution
    accent light up, asymmetrical beam down
    Beam angle (FWHM)
    up 1°
    Main beam angle
    down 60°
    Light source
    LED 4000 K
    Luminous flux
    2206 lm
    Power
    32 W
    Efficiency
    69 lm/W
    Control
    DALI
    Color Rendering Index cri
    CRI > 80 > 80
    Colour tolerance
    max 3 SDCM
    Service life
    L: 80, B:20
    Download

    Highrise is a wall luminaire with a two-sided light emission upward and downward. There is a choice of different reflector options with narrow or wide beam light distributions. In addition, the version with a projector lens creates a very narrow, sharp-edged accent light. For the illumination of floor areas there are optics with asymmetrical or lateral wide beam light distributions downward.

    Preselection
    Light source
    Colour
    Beam up
    Beam down
    Colour temperature
    Control
    Luminous flux

    132 Products
    •   Part number Description Colour Light distribution Light source Luminous flux Power
    • 8 365 155 0198 365 155 019Highrisesilver greyup 10° / down 10°LED 4000 K2967 lm36 Won / off
    • 8 365 155 0598 365 155 059Highrisesilver greyup 10° / down 58°LED 4000 K3155 lm36 Won / off
    • 8 365 155 0898 365 155 089Highrisesilver greyup 10° / up 138°LED 4000 K2901 lm32 Won / off
    • 8 365 155 0998 365 155 099Highrisesilver greyup 10° / down 60°LED 4000 K3053 lm36 Won / off
    • 8 365 155 1198 365 155 119Highrisesilver greyup 10° / down 10°LED 4000 K2967 lm36 WDALI
    • 8 365 155 1598 365 155 159Highrisesilver greyup 10° / down 58°LED 4000 K3155 lm36 WDALI
    • 8 365 155 1898 365 155 189Highrisesilver greyup 10° / up 138°LED 4000 K2901 lm32 WDALI
    • 8 365 155 1998 365 155 199Highrisesilver greyup 10° / down 60°LED 4000 K3053 lm36 WDALI
    • 8 365 156 0198 365 156 019Highrisesilver greyup 10° / down 10°LED 3000 K2826 lm36 Won / off
    • 8 365 156 0598 365 156 059Highrisesilver greyup 10° / down 58°LED 3000 K3005 lm36 Won / off
    • 8 365 156 0898 365 156 089Highrisesilver greyup 10° / down 138°LED 3000 K2763 lm32 Won / off
    • 8 365 156 0998 365 156 099Highrisesilver greyup 10° / down 60°LED 3000 K2908 lm36 Won / off
    • 8 365 156 1198 365 156 119Highrisesilver greyup 10° / down 10°LED 3000 K2826 lm36 WDALI
    • 8 365 156 1598 365 156 159Highrisesilver greyup 10° / down 58°LED 3000 K3005 lm36 WDALI
    • 8 365 156 1898 365 156 189Highrisesilver greyup 10° / down 138°LED 3000 K2763 lm32 WDALI
    • 8 365 156 1998 365 156 199Highrisesilver greyup 10° / down 60°LED 3000 K2908 lm36 WDALI
    • 8 365 145 0198 365 145 019Highriseblackup 10° / down 10°LED 4000 K2967 lm36 Won / off
    • 8 365 145 0598 365 145 059Highriseblackup 10° / down 58°LED 4000 K3155 lm36 Won / off
    • 8 365 145 0898 365 145 089Highriseblackup 10° / up 138°LED 4000 K2901 lm32 Won / off
    • 8 365 145 0998 365 145 099Highriseblackup 10° / down 60°LED 4000 K3053 lm36 Won / off
    • 8 365 145 1198 365 145 119Highriseblackup 10° / down 10°LED 4000 K2967 lm36 WDALI
    • 8 365 145 1598 365 145 159Highriseblackup 10° / down 58°LED 4000 K3155 lm36 WDALI
    • 8 365 145 1898 365 145 189Highriseblackup 10° / up 138°LED 4000 K2901 lm32 WDALI
    • 8 365 145 1998 365 145 199Highriseblackup 10° / down 60°LED 4000 K3053 lm36 WDALI
    • 8 365 146 0198 365 146 019Highriseblackup 10° / down 10°LED 3000 K2826 lm36 Won / off
    • 8 365 146 0598 365 146 059Highriseblackup 10° / down 58°LED 3000 K3005 lm36 Won / off
    • 8 365 146 0898 365 146 089Highriseblackup 10° / down 138°LED 3000 K2763 lm32 Won / off
    • 8 365 146 0998 365 146 099Highriseblackup 10° / down 60°LED 3000 K2908 lm36 Won / off
    • 8 365 146 1198 365 146 119Highriseblackup 10° / down 10°LED 3000 K2826 lm36 WDALI
    • 8 365 146 1598 365 146 159Highriseblackup 10° / down 58°LED 3000 K3005 lm36 WDALI
    • 8 365 146 1898 365 146 189Highriseblackup 10° / down 138°LED 3000 K2763 lm32 WDALI
    • 8 365 146 1998 365 146 199Highriseblackup 10° / down 60°LED 3000 K2908 lm36 WDALI
    • 8 365 165 0198 365 165 019Highrisewhiteup 10° / down 10°LED 4000 K2967 lm36 Won / off
    • 8 365 165 0598 365 165 059Highrisewhiteup 10° / down 58°LED 4000 K3155 lm36 Won / off
    • 8 365 165 0898 365 165 089Highrisewhiteup 10° / up 138°LED 4000 K2901 lm32 Won / off
    • 8 365 165 0998 365 165 099Highrisewhiteup 10° / down 60°LED 4000 K3053 lm36 Won / off
    • 8 365 165 1198 365 165 119Highrisewhiteup 10° / down 10°LED 4000 K2967 lm36 WDALI
    • 8 365 165 1598 365 165 159Highrisewhiteup 10° / down 58°LED 4000 K3155 lm36 WDALI
    • 8 365 165 1898 365 165 189Highrisewhiteup 10° / up 138°LED 4000 K2901 lm32 WDALI
    • 8 365 165 1998 365 165 199Highrisewhiteup 10° / down 60°LED 4000 K3053 lm36 WDALI
    • 8 365 166 0198 365 166 019Highrisewhiteup 10° / down 10°LED 3000 K2826 lm36 Won / off
    • 8 365 166 0598 365 166 059Highrisewhiteup 10° / down 58°LED 3000 K3005 lm36 Won / off
    • 8 365 166 0898 365 166 089Highrisewhiteup 10° / down 138°LED 3000 K2763 lm32 Won / off
    • 8 365 166 0998 365 166 099Highrisewhiteup 10° / down 60°LED 3000 K2908 lm36 Won / off
    • 8 365 166 1198 365 166 119Highrisewhiteup 10° / down 10°LED 3000 K2826 lm36 WDALI
    • 8 365 166 1598 365 166 159Highrisewhiteup 10° / down 58°LED 3000 K3005 lm36 WDALI
    • 8 365 166 1898 365 166 189Highrisewhiteup 10° / down 138°LED 3000 K2763 lm32 WDALI
    • 8 365 166 1998 365 166 199Highrisewhiteup 10° / down 60°LED 3000 K2908 lm36 WDALI
    • 8 365 555 0598 365 555 059Highrisesilver greyup58° / down 58°LED 4000 K3344 lm36 Won / off
    • 8 365 555 0898 365 555 089Highrisesilver greyup58° / down 138°LED 4000 K3089 lm36 Won / off
    • 8 365 555 0998 365 555 099Highrisesilver greyup58° / down 60°LED 4000 K3241 lm36 Won / off
    • 8 365 555 1598 365 555 159Highrisesilver greyup58° / down 58°LED 4000 K3344 lm36 WDALI
    • 8 365 555 1898 365 555 189Highrisesilver greyup58° / down 138°LED 4000 K3089 lm36 WDALI
    • 8 365 555 1998 365 555 199Highrisesilver greyup58° / down 60°LED 4000 K3241 lm36 WDALI
    • 8 365 556 0598 365 556 059Highrisesilver greyup58° / down 58°LED 3000 K3184 lm36 Won / off
    • 8 365 556 0898 365 556 089Highrisesilver greyup58° / down 138°LED 3000 K2942 lm36 Won / off
    • 8 365 556 0998 365 556 099Highrisesilver greyup58° / down 60°LED 3000 K3087 lm36 Won / off
    • 8 365 556 1598 365 556 159Highrisesilver greyup58° / down 58°LED 3000 K3184 lm36 WDALI
    • 8 365 556 1898 365 556 189Highrisesilver greyup58° / down 138°LED 3000 K2942 lm36 WDALI
    • 8 365 556 1998 365 556 199Highrisesilver greyup58° / down 60°LED 3000 K3087 lm36 WDALI
    • 8 365 545 0598 365 545 059Highriseblackup58° / down 58°LED 4000 K3344 lm36 Won / off
    • 8 365 545 0898 365 545 089Highriseblackup58° / down 138°LED 4000 K3089 lm36 Won / off
    • 8 365 545 0998 365 545 099Highriseblackup58° / down 60°LED 4000 K3241 lm36 Won / off
    • 8 365 545 1598 365 545 159Highriseblackup58° / down 58°LED 4000 K3344 lm36 WDALI
    • 8 365 545 1898 365 545 189Highriseblackup58° / down 138°LED 4000 K3089 lm36 WDALI
    • 8 365 545 1998 365 545 199Highriseblackup58° / down 60°LED 4000 K3241 lm36 WDALI
    • 8 365 546 0598 365 546 059Highriseblackup58° / down 58°LED 3000 K3184 lm36 Won / off
    • 8 365 546 0898 365 546 089Highriseblackup58° / down 138°LED 3000 K2942 lm36 Won / off
    • 8 365 546 0998 365 546 099Highriseblackup58° / down 60°LED 3000 K3087 lm36 Won / off
    • 8 365 546 1598 365 546 159Highriseblackup58° / down 58°LED 3000 K3184 lm36 WDALI
    • 8 365 546 1898 365 546 189Highriseblackup58° / down 138°LED 3000 K2942 lm36 WDALI
    • 8 365 546 1998 365 546 199Highriseblackup58° / down 60°LED 3000 K3087 lm36 WDALI
    • 8 365 565 0598 365 565 059Highrisewhiteup58° / down 58°LED 4000 K3344 lm36 Won / off
    • 8 365 565 0898 365 565 089Highrisewhiteup58° / down 138°LED 4000 K3089 lm36 Won / off
    • 8 365 565 0998 365 565 099Highrisewhiteup58° / down 60°LED 4000 K3241 lm36 Won / off
    • 8 365 565 1598 365 565 159Highrisewhiteup58° / down 58°LED 4000 K3344 lm36 WDALI
    • 8 365 565 1898 365 565 189Highrisewhiteup58° / down 138°LED 4000 K3089 lm36 WDALI
    • 8 365 565 1998 365 565 199Highrisewhiteup58° / down 60°LED 4000 K3241 lm36 WDALI
    • 8 365 566 0598 365 566 059Highrisewhiteup58° / down 58°LED 3000 K3184 lm36 Won / off
    • 8 365 566 0898 365 566 089Highrisewhiteup58° / down 138°LED 3000 K2942 lm36 Won / off
    • 8 365 566 0998 365 566 099Highrisewhiteup58° / down 60°LED 3000 K3087 lm36 Won / off
    • 8 365 566 1598 365 566 159Highrisewhiteup58° / down 58°LED 3000 K3184 lm36 WDALI
    • 8 365 566 1898 365 566 189Highrisewhiteup58° / down 138°LED 3000 K2942 lm36 WDALI
    • 8 365 566 1998 365 566 199Highrisewhiteup58° / down 60°LED 3000 K3087 lm36 WDALI
    • 8 365 655 0198 365 655 019Highrisesilver greyup 1° / down 10°LED 4000 K2120 lm32 Won / off
    • 8 365 655 0598 365 655 059Highrisesilver greyup 1° / down 58°LED 4000 K2308 lm32 Won / off
    • 8 365 655 0898 365 655 089Highrisesilver greyup 1° / down 138°LED 4000 K2054 lm32 Won / off
    • 8 365 655 0998 365 655 099Highrisesilver greyup 1° / down 60°LED 4000 K2206 lm32 Won / off
    • 8 365 655 1198 365 655 119Highrisesilver greyup 1° / down 10°LED 4000 K2120 lm32 WDALI
    • 8 365 655 1598 365 655 159Highrisesilver greyup 1° / down 58°LED 4000 K2308 lm32 WDALI
    • 8 365 655 1898 365 655 189Highrisesilver greyup 1° / down 138°LED 4000 K2054 lm32 WDALI
    • 8 365 655 1998 365 655 199Highrisesilver greyup 1° / down 60°LED 4000 K2206 lm32 WDALI
    • 8 365 656 0198 365 656 019Highrisesilver greyup 1° / down 10°LED 3000 K2019 lm32 Won / off
    • 8 365 656 0598 365 656 059Highrisesilver greyup 1° / down 58°LED 3000 K2198 lm31 Won / off
    • 8 365 656 0898 365 656 089Highrisesilver greyup 1° / down 138°LED 3000 K1956 lm32 Won / off
    • 8 365 656 0998 365 656 099Highrisesilver greyup 1° / down 60°LED 3000 K2176 lm32 Won / off
    • 8 365 656 1198 365 656 119Highrisesilver greyup 1° / down 10°LED 3000 K2019 lm32 WDALI
    • 8 365 656 1598 365 656 159Highrisesilver greyup 1° / down 58°LED 3000 K2198 lm31 WDALI
    • 8 365 656 1898 365 656 189Highrisesilver greyup 1° / down 138°LED 3000 K1956 lm32 WDALI
    • 8 365 656 1998 365 656 199Highrisesilver greyup 1° / down 60°LED 3000 K2176 lm32 WDALI
    • 8 365 645 0198 365 645 019Highriseblackup 1° / down 10°LED 4000 K2120 lm32 Won / off
    • 8 365 645 0598 365 645 059Highriseblackup 1° / down 58°LED 4000 K2308 lm32 Won / off
    • 8 365 645 0898 365 645 089Highriseblackup 1° / down 138°LED 4000 K2054 lm32 Won / off
    • 8 365 645 0998 365 645 099Highriseblackup 1° / down 60°LED 4000 K2206 lm32 Won / off
    • 8 365 645 1198 365 645 119Highriseblackup 1° / down 10°LED 4000 K2120 lm32 WDALI
    • 8 365 645 1598 365 645 159Highriseblackup 1° / down 58°LED 4000 K2308 lm32 WDALI
    • 8 365 645 1898 365 645 189Highriseblackup 1° / down 138°LED 4000 K2054 lm32 WDALI
    • 8 365 645 1998 365 645 199Highriseblackup 1° / down 60°LED 4000 K2206 lm32 WDALI
    • 8 365 646 0198 365 646 019Highriseblackup 1° / down 10°LED 3000 K2019 lm32 Won / off
    • 8 365 646 0598 365 646 059Highriseblackup 1° / down 58°LED 3000 K2198 lm31 Won / off
    • 8 365 646 0898 365 646 089Highriseblackup 1° / down 138°LED 3000 K1956 lm32 Won / off
    • 8 365 646 0998 365 646 099Highriseblackup 1° / down 60°LED 3000 K2176 lm32 Won / off
    • 8 365 646 1198 365 646 119Highriseblackup 1° / down 10°LED 3000 K2019 lm32 WDALI
    • 8 365 646 1598 365 646 159Highriseblackup 1° / down 58°LED 3000 K2198 lm31 WDALI
    • 8 365 646 1898 365 646 189Highriseblackup 1° / down 138°LED 3000 K1956 lm32 WDALI
    • 8 365 646 1998 365 646 199Highriseblackup 1° / down 60°LED 3000 K2176 lm32 WDALI
    • 8 365 665 0198 365 665 019Highrisewhiteup 1° / down 10°LED 4000 K2120 lm32 Won / off
    • 8 365 665 0598 365 665 059Highrisewhiteup 1° / down 58°LED 4000 K2308 lm32 Won / off
    • 8 365 665 0898 365 665 089Highrisewhiteup 1° / down 138°LED 4000 K2054 lm32 Won / off
    • 8 365 665 0998 365 665 099Highrisewhiteup 1° / down 60°LED 4000 K2206 lm32 Won / off
    • 8 365 665 1198 365 665 119Highrisewhiteup 1° / down 10°LED 4000 K2120 lm32 WDALI
    • 8 365 665 1598 365 665 159Highrisewhiteup 1° / down 58°LED 4000 K2308 lm32 WDALI
    • 8 365 665 1898 365 665 189Highrisewhiteup 1° / down 138°LED 4000 K2054 lm32 WDALI
    • 8 365 665 1998 365 665 199Highrisewhiteup 1° / down 60°LED 4000 K2206 lm32 WDALI
    • 8 365 666 0198 365 666 019Highrisewhiteup 1° / down 10°LED 3000 K2019 lm32 Won / off
    • 8 365 666 0598 365 666 059Highrisewhiteup 1° / down 58°LED 3000 K2198 lm31 Won / off
    • 8 365 666 0898 365 666 089Highrisewhiteup 1° / down 138°LED 3000 K1956 lm32 Won / off
    • 8 365 666 0998 365 666 099Highrisewhiteup 1° / down 60°LED 3000 K2176 lm32 Won / off
    • 8 365 666 1198 365 666 119Highrisewhiteup 1° / down 10°LED 3000 K2019 lm32 WDALI
    • 8 365 666 1598 365 666 159Highrisewhiteup 1° / down 58°LED 3000 K2198 lm31 WDALI
    • 8 365 666 1898 365 666 189Highrisewhiteup 1° / down 138°LED 3000 K1956 lm32 WDALI
    • 8 365 666 1998 365 666 199Highrisewhiteup 1° / down 60°LED 3000 K2176 lm32 WDALI
