Metaspot
Green Heart, University of Birmingham
Speirs Major, London

8 233 067 149

Housing colour

Fixation

with mounting bracket

Colour temperature

Light distribution

Control

Specification

Colour: white
Fixation: with mounting bracket
Light distribution: medium wide beam
Beam angle (FWHM): 26°
Light source: LED 2700 K
Luminous flux: 3957 lm
Power: 58 W
Efficiency: 68 lm/W
Control: DALI
Color Rendering Index cri: CRI > 80 > 80
Colour tolerance: 3
Service life: L: 80, B:10

Download

122 0 573 960 | white

Cowl stainless steel, to avoid glare from 3 directions, for mounting in front of floodlight

129 0 754 | black

Honeycomb louvre internal (factory fitted), to avoid glare

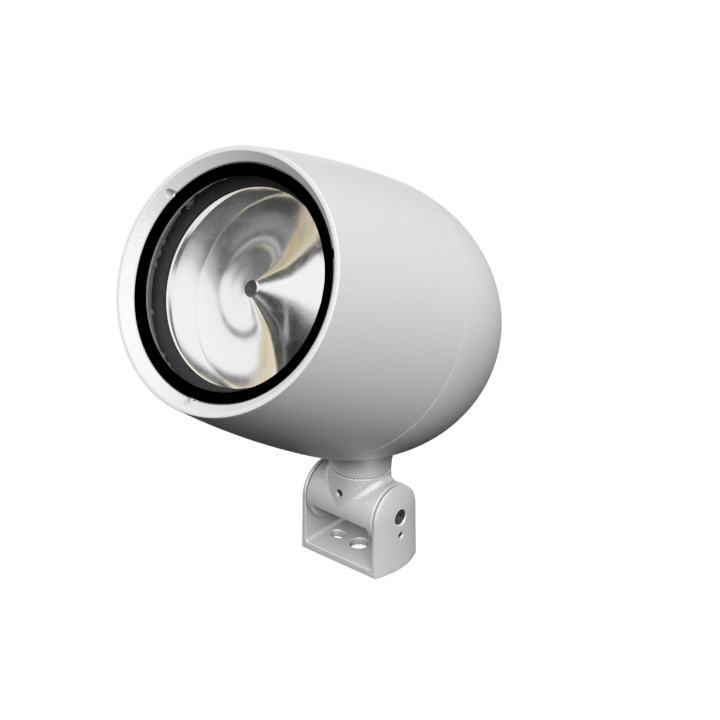

The new floodlight series Metaspot combines exemplary design with innovative optics. The new Darkring optics are a breakthrough development for effective glare control. For Metaspot a pole-top fitter with an integral Zhaga-18 interface is available as an accessory. By the use of an antenna, up to 4 luminaires on one pole can be controlled and monitored individually. In addition to pole luminaires, there are versions for surface mounting.
