  • Minispot

  • Rue de la République Lyon
    Atelier Jéol

    ×

    8 924 046 019

    Minispot 1 - 48 V

    Housing colour

    silver grey
    black
    white

    Colour temperature

    4000 K
    3000 K
    2700 K

    Light distribution

    Control

    on / off
    DALI
    zurück
    Specification
    Colour
    black
    Fixation
    with mounting bracket

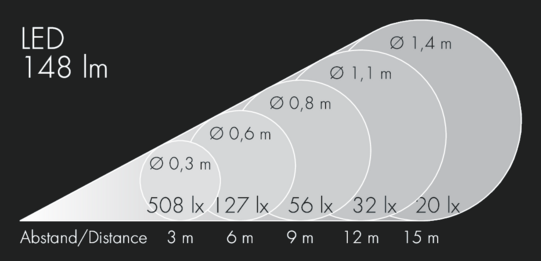

    Light distribution
    narrow beam
    Beam angle (FWHM)
    5°
    Light source
    LED 3000 K
    Luminous flux
    148 lm
    Power
    2 W
    Efficiency
    74 lm/W
    Control
    on / off
    Color Rendering Index cri
    CRI > 80 > 80
    Colour tolerance
    3
    Service life
    L: 90, B:10
    Download
    Add accessories to your data sheet with a click.

    129 0 731 940 | black

    Earth spike stainless steel, for use in landscaped areas

    129 0 901  | black

    Honeycomb louvre internal (factory fitted), to avoid glare

    119 0 071

    remote control gear, 48 V, max. 70 W in plastic installation housing (gray)

    119 0 072

    remote control gear, 48 V, max. 150 W in plastic installation housing (gray)
    Download data sheet

    Minispot are cylindrical floodlights with very compact dimensions. With their minimalist design these luminaires are ideal for discrete installation on façades and for use in landscape lighting. Dimmable versions for 48 Volt power supply are available as well as luminaires that can be connected to 230 Volt directly. In addition, there are Casambi® ready versions with monochrome or RGBW LEDs that can be controlled with an app.

    Preselection
    Light source
    Colour
    Light distribution
    Colour temperature
    Control
    Power
    Luminous flux

    285 Products
    •   Part number Description Colour Light distribution Light source Luminous flux Power
    • 8 924 055 0198 924 055 019Minispot 1 - 48 Vsilver greynarrow beam 5°LED 4000 K156 lm2 Won / off
    • 8 924 055 0298 924 055 029Minispot 1 - 48 Vsilver greylinear vertical 52° / 7°LED 4000 K149 lm2 Won / off
    • 8 924 055 0398 924 055 039Minispot 1 - 48 Vsilver greylinear horizontal 7° / 52°LED 4000 K150 lm2 Won / off
    • 8 924 055 0498 924 055 049Minispot 1 - 48 Vsilver greymedium wide beam 25°LED 4000 K145 lm2 Won / off
    • 8 924 055 0598 924 055 059Minispot 1 - 48 Vsilver greywide beam 44°LED 4000 K149 lm2 Won / off
    • 8 924 055 1198 924 055 119Minispot 1 - 48 Vsilver greynarrow beam 5°LED 4000 K156 lm2 WDALI
    • 8 924 055 1298 924 055 129Minispot 1 - 48 Vsilver greylinear vertical 52° / 7°LED 4000 K149 lm2 WDALI
    • 8 924 055 1398 924 055 139Minispot 1 - 48 Vsilver greylinear horizontal 7° / 52°LED 4000 K150 lm2 WDALI
    • 8 924 055 1498 924 055 149Minispot 1 - 48 Vsilver greymedium wide beam 25°LED 4000 K145 lm2 WDALI
    • 8 924 055 1598 924 055 159Minispot 1 - 48 Vsilver greywide beam 44°LED 4000 K149 lm2 WDALI
    • 8 924 056 0198 924 056 019Minispot 1 - 48 Vsilver greynarrow beam 5°LED 3000 K148 lm2 Won / off
    • 8 924 056 0298 924 056 029Minispot 1 - 48 Vsilver greylinear vertical 52° / 7°LED 3000 K142 lm2 Won / off
    • 8 924 056 0398 924 056 039Minispot 1 - 48 Vsilver greylinear horizontal 7° / 52°LED 3000 K142 lm2 Won / off
    • 8 924 056 0498 924 056 049Minispot 1 - 48 Vsilver greymedium wide beam 25°LED 3000 K138 lm2 Won / off
    • 8 924 056 0598 924 056 059Minispot 1 - 48 Vsilver greywide beam 44°LED 3000 K141 lm2 Won / off
    • 8 924 056 1198 924 056 119Minispot 1 - 48 Vsilver greynarrow beam 5°LED 3000 K148 lm2 WDALI
    • 8 924 056 1298 924 056 129Minispot 1 - 48 Vsilver greylinear vertical 52° / 7°LED 3000 K142 lm2 WDALI
    • 8 924 056 1398 924 056 139Minispot 1 - 48 Vsilver greylinear horizontal 7° / 52°LED 3000 K142 lm2 WDALI
    • 8 924 056 1498 924 056 149Minispot 1 - 48 Vsilver greymedium wide beam 25°LED 3000 K138 lm2 WDALI
    • 8 924 056 1598 924 056 159Minispot 1 - 48 Vsilver greywide beam 44°LED 3000 K141 lm2 WDALI
    • 8 924 057 0198 924 057 019Minispot 1 - 48 Vsilver greynarrow beam 5°LED 2700 K141 lm2 Won / off
    • 8 924 057 0298 924 057 029Minispot 1 - 48 Vsilver greylinear vertical 52° / 7°LED 2700 K134 lm2 Won / off
    • 8 924 057 0398 924 057 039Minispot 1 - 48 Vsilver greylinear horizontal 7° / 52°LED 2700 K137 lm2 Won / off
    • 8 924 057 0498 924 057 049Minispot 1 - 48 Vsilver greymedium wide beam 25°LED 2700 K133 lm2 Won / off
    • 8 924 057 0598 924 057 059Minispot 1 - 48 Vsilver greywide beam 44°LED 2700 K136 lm2 Won / off
    • 8 924 057 1198 924 057 119Minispot 1 - 48 Vsilver greynarrow beam 5°LED 2700 K141 lm2 WDALI
    • 8 924 057 1298 924 057 129Minispot 1 - 48 Vsilver greylinear vertical 52° / 7°LED 2700 K134 lm2 WDALI
    • 8 924 057 1398 924 057 139Minispot 1 - 48 Vsilver greylinear horizontal 7° / 52°LED 2700 K137 lm2 WDALI
    • 8 924 057 1498 924 057 149Minispot 1 - 48 Vsilver greymedium wide beam 25°LED 2700 K133 lm2 WDALI
    • 8 924 057 1598 924 057 159Minispot 1 - 48 Vsilver greywide beam 44°LED 2700 K136 lm2 WDALI
    • 8 924 045 0198 924 045 019Minispot 1 - 48 Vblacknarrow beam 5°LED 4000 K156 lm2 Won / off
    • 8 924 045 0298 924 045 029Minispot 1 - 48 Vblacklinear vertical 52° / 7°LED 4000 K149 lm2 Won / off
    • 8 924 045 0398 924 045 039Minispot 1 - 48 Vblacklinear horizontal 7° / 52°LED 4000 K150 lm2 Won / off
    • 8 924 045 0498 924 045 049Minispot 1 - 48 Vblackmedium wide beam 25°LED 4000 K145 lm2 Won / off
    • 8 924 045 0598 924 045 059Minispot 1 - 48 Vblackwide beam 44°LED 4000 K149 lm2 Won / off
    • 8 924 045 1198 924 045 119Minispot 1 - 48 Vblacknarrow beam 5°LED 4000 K156 lm2 WDALI
    • 8 924 045 1298 924 045 129Minispot 1 - 48 Vblacklinear vertical 52° / 7°LED 4000 K149 lm2 WDALI
    • 8 924 045 1398 924 045 139Minispot 1 - 48 Vblacklinear horizontal 7° / 52°LED 4000 K150 lm2 WDALI
    • 8 924 045 1498 924 045 149Minispot 1 - 48 Vblackmedium wide beam 25°LED 4000 K145 lm2 WDALI
    • 8 924 045 1598 924 045 159Minispot 1 - 48 Vblackwide beam 44°LED 4000 K149 lm2 WDALI
    • 8 924 046 0198 924 046 019Minispot 1 - 48 Vblacknarrow beam 5°LED 3000 K148 lm2 Won / off
    • 8 924 046 0298 924 046 029Minispot 1 - 48 Vblacklinear vertical 52° / 7°LED 3000 K142 lm2 Won / off
    • 8 924 046 0398 924 046 039Minispot 1 - 48 Vblacklinear horizontal 7° / 52°LED 3000 K142 lm2 Won / off
    • 8 924 046 0498 924 046 049Minispot 1 - 48 Vblackmedium wide beam 25°LED 3000 K138 lm2 Won / off
    • 8 924 046 0598 924 046 059Minispot 1 - 48 Vblackwide beam 44°LED 3000 K141 lm2 Won / off
    • 8 924 046 1198 924 046 119Minispot 1 - 48 Vblacknarrow beam 5°LED 3000 K148 lm2 WDALI
    • 8 924 046 1298 924 046 129Minispot 1 - 48 Vblacklinear vertical 52° / 7°LED 3000 K142 lm2 WDALI
    • 8 924 046 1398 924 046 139Minispot 1 - 48 Vblacklinear horizontal 7° / 52°LED 3000 K142 lm2 WDALI
    • 8 924 046 1498 924 046 149Minispot 1 - 48 Vblackmedium wide beam 25°LED 3000 K138 lm2 WDALI
    • 8 924 046 1598 924 046 159Minispot 1 - 48 Vblackwide beam 44°LED 3000 K141 lm2 WDALI
    • 8 924 047 0198 924 047 019Minispot 1 - 48 Vblacknarrow beam 5°LED 2700 K141 lm2 Won / off
    • 8 924 047 0298 924 047 029Minispot 1 - 48 Vblacklinear vertical 52° / 7°LED 2700 K134 lm2 Won / off
    • 8 924 047 0398 924 047 039Minispot 1 - 48 Vblacklinear horizontal 7° / 52°LED 2700 K137 lm2 Won / off
    • 8 924 047 0498 924 047 049Minispot 1 - 48 Vblackmedium wide beam 25°LED 2700 K133 lm2 Won / off
    • 8 924 047 0598 924 047 059Minispot 1 - 48 Vblackwide beam 44°LED 2700 K136 lm2 Won / off
    • 8 924 047 1198 924 047 119Minispot 1 - 48 Vblacknarrow beam 5°LED 2700 K141 lm2 WDALI
    • 8 924 047 1298 924 047 129Minispot 1 - 48 Vblacklinear vertical 52° / 7°LED 2700 K134 lm2 WDALI
    • 8 924 047 1398 924 047 139Minispot 1 - 48 Vblacklinear horizontal 7° / 52°LED 2700 K137 lm2 WDALI
    • 8 924 047 1498 924 047 149Minispot 1 - 48 Vblackmedium wide beam 25°LED 2700 K133 lm2 WDALI
    • 8 924 047 1598 924 047 159Minispot 1 - 48 Vblackwide beam 44°LED 2700 K136 lm2 WDALI
    • 8 924 065 0198 924 065 019Minispot 1 - 48 Vwhitenarrow beam 5°LED 4000 K156 lm2 Won / off
    • 8 924 065 0298 924 065 029Minispot 1 - 48 Vwhitelinear vertical 52° / 7°LED 4000 K149 lm2 Won / off
    • 8 924 065 0398 924 065 039Minispot 1 - 48 Vwhitelinear horizontal 7° / 52°LED 4000 K150 lm2 Won / off
    • 8 924 065 0498 924 065 049Minispot 1 - 48 Vwhitemedium wide beam 25°LED 4000 K145 lm2 Won / off
    • 8 924 065 0598 924 065 059Minispot 1 - 48 Vwhitewide beam 44°LED 4000 K149 lm2 Won / off
    • 8 924 065 1198 924 065 119Minispot 1 - 48 Vwhitenarrow beam 5°LED 4000 K156 lm2 WDALI
    • 8 924 065 1298 924 065 129Minispot 1 - 48 Vwhitelinear vertical 52° / 7°LED 4000 K149 lm2 WDALI
    • 8 924 065 1398 924 065 139Minispot 1 - 48 Vwhitelinear horizontal 7° / 52°LED 4000 K150 lm2 WDALI
    • 8 924 065 1498 924 065 149Minispot 1 - 48 Vwhitemedium wide beam 25°LED 4000 K145 lm2 WDALI
    • 8 924 065 1598 924 065 159Minispot 1 - 48 Vwhitewide beam 44°LED 4000 K149 lm2 WDALI
    • 8 924 066 0198 924 066 019Minispot 1 - 48 Vwhitenarrow beam 5°LED 3000 K148 lm2 Won / off
    • 8 924 066 0298 924 066 029Minispot 1 - 48 Vwhitelinear vertical 52° / 7°LED 3000 K142 lm2 Won / off
    • 8 924 066 0398 924 066 039Minispot 1 - 48 Vwhitelinear horizontal 7° / 52°LED 3000 K142 lm2 Won / off
    • 8 924 066 0498 924 066 049Minispot 1 - 48 Vwhitemedium wide beam 25°LED 3000 K138 lm2 Won / off
    • 8 924 066 0598 924 066 059Minispot 1 - 48 Vwhitewide beam 44°LED 3000 K141 lm2 Won / off
    • 8 924 066 1198 924 066 119Minispot 1 - 48 Vwhitenarrow beam 5°LED 3000 K148 lm2 WDALI
    • 8 924 066 1298 924 066 129Minispot 1 - 48 Vwhitelinear vertical 52° / 7°LED 3000 K142 lm2 WDALI
    • 8 924 066 1398 924 066 139Minispot 1 - 48 Vwhitelinear horizontal 7° / 52°LED 3000 K142 lm2 WDALI
    • 8 924 066 1498 924 066 149Minispot 1 - 48 Vwhitemedium wide beam 25°LED 3000 K138 lm2 WDALI
    • 8 924 066 1598 924 066 159Minispot 1 - 48 Vwhitewide beam 44°LED 3000 K141 lm2 WDALI
    • 8 924 067 0198 924 067 019Minispot 1 - 48 Vwhitenarrow beam 5°LED 2700 K141 lm2 Won / off
    • 8 924 067 0298 924 067 029Minispot 1 - 48 Vwhitelinear vertical 52° / 7°LED 2700 K134 lm2 Won / off
    • 8 924 067 0398 924 067 039Minispot 1 - 48 Vwhitelinear horizontal 7° / 52°LED 2700 K137 lm2 Won / off
    • 8 924 067 0498 924 067 049Minispot 1 - 48 Vwhitemedium wide beam 25°LED 2700 K133 lm2 Won / off
    • 8 924 067 0598 924 067 059Minispot 1 - 48 Vwhitewide beam 44°LED 2700 K136 lm2 Won / off
    • 8 924 067 1198 924 067 119Minispot 1 - 48 Vwhitenarrow beam 5°LED 2700 K141 lm2 WDALI
    • 8 924 067 1298 924 067 129Minispot 1 - 48 Vwhitelinear vertical 52° / 7°LED 2700 K134 lm2 WDALI
    • 8 924 067 1398 924 067 139Minispot 1 - 48 Vwhitelinear horizontal 7° / 52°LED 2700 K137 lm2 WDALI
    • 8 924 067 1498 924 067 149Minispot 1 - 48 Vwhitemedium wide beam 25°LED 2700 K133 lm2 WDALI
    • 8 924 067 1598 924 067 159Minispot 1 - 48 Vwhitewide beam 44°LED 2700 K136 lm2 WDALI
    • 8 925 055 0198 925 055 019Minispot 2 - 48 Vsilver greynarrow beam 6°LED 4000 K576 lm9 Won / off
    • 8 925 055 0298 925 055 029Minispot 2 - 48 Vsilver greylinear vertical 34° / 7°LED 4000 K534 lm8 Won / off
    • 8 925 055 0398 925 055 039Minispot 2 - 48 Vsilver greylinear horizontal 7° / 34°LED 4000 K534 lm8 Won / off
    • 8 925 055 0498 925 055 049Minispot 2 - 48 Vsilver greymedium wide beam 23°LED 4000 K576 lm9 Won / off
    • 8 925 055 0598 925 055 059Minispot 2 - 48 Vsilver greywide beam 59°LED 4000 K604 lm8 Won / off
    • 8 925 055 1198 925 055 119Minispot 2 - 48 Vsilver greynarrow beam 6°LED 4000 K576 lm9 WDALI
    • 8 925 055 1298 925 055 129Minispot 2 - 48 Vsilver greylinear vertical 34° / 7°LED 4000 K534 lm8 WDALI
    • 8 925 055 1398 925 055 139Minispot 2 - 48 Vsilver greylinear horizontal 7° / 34°LED 4000 K534 lm8 WDALI
    • 8 925 055 1498 925 055 149Minispot 2 - 48 Vsilver greymedium wide beam 23°LED 4000 K576 lm9 WDALI
    • 8 925 055 1598 925 055 159Minispot 2 - 48 Vsilver greywide beam 59°LED 4000 K604 lm8 WDALI
    • 8 925 055 3198 925 055 319Minispot 2 - 48 Vsilver greynarrow beam 6°LED 4000 K576 lm9 WCasambi
    • 8 925 055 3298 925 055 329Minispot 2 - 48 Vsilver greylinear vertical 34° / 7°LED 4000 K534 lm8 WCasambi
    • 8 925 055 3398 925 055 339Minispot 2 - 48 Vsilver greylinear horizontal 7° / 34°LED 4000 K534 lm8 WCasambi
    • 8 925 055 3498 925 055 349Minispot 2 - 48 Vsilver greymedium wide beam 23°LED 4000 K576 lm9 WCasambi
    • 8 925 055 3598 925 055 359Minispot 2 - 48 Vsilver greywide beam 59°LED 4000 K604 lm8 WCasambi
    • 8 925 056 0198 925 056 019Minispot 2 - 48 Vsilver greynarrow beam 6°LED 3000 K549 lm9 Won / off
    • 8 925 056 0298 925 056 029Minispot 2 - 48 Vsilver greylinear vertical 34° / 7°LED 3000 K506 lm8 Won / off
    • 8 925 056 0398 925 056 039Minispot 2 - 48 Vsilver greylinear horizontal 7° / 34°LED 3000 K506 lm8 Won / off
    • 8 925 056 0498 925 056 049Minispot 2 - 48 Vsilver greymedium wide beam 23°LED 3000 K546 lm9 Won / off
    • 8 925 056 0598 925 056 059Minispot 2 - 48 Vsilver greywide beam 59°LED 3000 K573 lm8 Won / off
    • 8 925 056 1198 925 056 119Minispot 2 - 48 Vsilver greynarrow beam 6°LED 3000 K549 lm9 WDALI
    • 8 925 056 1298 925 056 129Minispot 2 - 48 Vsilver greylinear vertical 34° / 7°LED 3000 K506 lm8 WDALI
    • 8 925 056 1398 925 056 139Minispot 2 - 48 Vsilver greylinear horizontal 7° / 34°LED 3000 K506 lm8 WDALI
    • 8 925 056 1498 925 056 149Minispot 2 - 48 Vsilver greymedium wide beam 23°LED 3000 K546 lm9 WDALI
    • 8 925 056 1598 925 056 159Minispot 2 - 48 Vsilver greywide beam 59°LED 3000 K573 lm8 WDALI
    • 8 925 056 3198 925 056 319Minispot 2 - 48 Vsilver greynarrow beam 6°LED 3000 K549 lm9 WCasambi
    • 8 925 056 3298 925 056 329Minispot 2 - 48 Vsilver greylinear vertical 34° / 7°LED 3000 K506 lm8 WCasambi
    • 8 925 056 3398 925 056 339Minispot 2 - 48 Vsilver greylinear horizontal 7° / 34°LED 3000 K506 lm8 WCasambi
    • 8 925 056 3498 925 056 349Minispot 2 - 48 Vsilver greymedium wide beam 23°LED 3000 K546 lm9 WCasambi
    • 8 925 056 3598 925 056 359Minispot 2 - 48 Vsilver greywide beam 59°LED 3000 K573 lm8 WCasambi
    • 8 925 057 0198 925 057 019Minispot 2 - 48 Vsilver greynarrow beam 6°LED 2700 K528 lm9 Won / off
    • 8 925 057 0298 925 057 029Minispot 2 - 48 Vsilver greylinear vertical 34° / 7°LED 2700 K484 lm8 Won / off
    • 8 925 057 0398 925 057 039Minispot 2 - 48 Vsilver greylinear horizontal 7° / 34°LED 2700 K484 lm8 Won / off
    • 8 925 057 0498 925 057 049Minispot 2 - 48 Vsilver greymedium wide beam 23°LED 2700 K525 lm9 Won / off
    • 8 925 057 0598 925 057 059Minispot 2 - 48 Vsilver greywide beam 59°LED 2700 K547 lm8 Won / off
    • 8 925 057 1198 925 057 119Minispot 2 - 48 Vsilver greynarrow beam 6°LED 2700 K528 lm9 WDALI
    • 8 925 057 1298 925 057 129Minispot 2 - 48 Vsilver greylinear vertical 34° / 7°LED 2700 K484 lm8 WDALI
    • 8 925 057 1398 925 057 139Minispot 2 - 48 Vsilver greylinear horizontal 7° / 34°LED 2700 K484 lm8 WDALI
    • 8 925 057 1498 925 057 149Minispot 2 - 48 Vsilver greymedium wide beam 23°LED 2700 K525 lm9 WDALI
    • 8 925 057 1598 925 057 159Minispot 2 - 48 Vsilver greywide beam 59°LED 2700 K547 lm8 WDALI
    • 8 925 057 3198 925 057 319Minispot 2 - 48 Vsilver greynarrow beam 6°LED 2700 K528 lm9 WCasambi
    • 8 925 057 3298 925 057 329Minispot 2 - 48 Vsilver greylinear vertical 34° / 7°LED 2700 K484 lm8 WCasambi
    • 8 925 057 3398 925 057 339Minispot 2 - 48 Vsilver greylinear horizontal 7° / 34°LED 2700 K484 lm8 WCasambi
    • 8 925 057 3498 925 057 349Minispot 2 - 48 Vsilver greymedium wide beam 23°LED 2700 K525 lm9 WCasambi
    • 8 925 057 3598 925 057 359Minispot 2 - 48 Vsilver greywide beam 59°LED 2700 K547 lm8 WCasambi
    • 8 925 059 3198 925 059 319Minispot 2 - 48 Vsilver greynarrow beam 10°LED RGBW (3000 K)342 lm8 WCasambi
    • 8 925 059 3298 925 059 329Minispot 2 - 48 Vsilver greylinear vertical 33° / 16°LED RGBW (3000 K)338 lm8 WCasambi
    • 8 925 059 3398 925 059 339Minispot 2 - 48 Vsilver greylinear horizontal 16° / 33°LED RGBW (3000 K)338 lm8 WCasambi
    • 8 925 059 3498 925 059 349Minispot 2 - 48 Vsilver greymedium wide beam 34°LED RGBW (3000 K)342 lm8 WCasambi
    • 8 925 059 3598 925 059 359Minispot 2 - 48 Vsilver greywide beam 52°LED RGBW (3000 K)341 lm8 WCasambi
    • 8 925 045 0198 925 045 019Minispot 2 - 48 Vblacknarrow beam 6°LED 4000 K576 lm9 Won / off
    • 8 925 045 0298 925 045 029Minispot 2 - 48 Vblacklinear vertical 34° / 7°LED 4000 K534 lm8 Won / off
    • 8 925 045 0398 925 045 039Minispot 2 - 48 Vblacklinear horizontal 7° / 34°LED 4000 K534 lm8 Won / off
    • 8 925 045 0498 925 045 049Minispot 2 - 48 Vblackmedium wide beam 23°LED 4000 K576 lm9 Won / off
    • 8 925 045 0598 925 045 059Minispot 2 - 48 Vblackwide beam 59°LED 4000 K604 lm8 Won / off
    • 8 925 045 1198 925 045 119Minispot 2 - 48 Vblacknarrow beam 6°LED 4000 K576 lm9 WDALI
    • 8 925 045 1298 925 045 129Minispot 2 - 48 Vblacklinear vertical 34° / 7°LED 4000 K534 lm8 WDALI
    • 8 925 045 1398 925 045 139Minispot 2 - 48 Vblacklinear horizontal 7° / 34°LED 4000 K534 lm8 WDALI
    • 8 925 045 1498 925 045 149Minispot 2 - 48 Vblackmedium wide beam 23°LED 4000 K576 lm9 WDALI
    • 8 925 045 1598 925 045 159Minispot 2 - 48 Vblackwide beam 59°LED 4000 K604 lm8 WDALI
    • 8 925 045 3198 925 045 319Minispot 2 - 48 Vblacknarrow beam 6°LED 4000 K576 lm9 WCasambi
    • 8 925 045 3298 925 045 329Minispot 2 - 48 Vblacklinear vertical 34° / 7°LED 4000 K534 lm8 WCasambi
    • 8 925 045 3398 925 045 339Minispot 2 - 48 Vblacklinear horizontal 7° / 34°LED 4000 K534 lm8 WCasambi
    • 8 925 045 3498 925 045 349Minispot 2 - 48 Vblackmedium wide beam 23°LED 4000 K576 lm9 WCasambi
    • 8 925 045 3598 925 045 359Minispot 2 - 48 Vblackwide beam 59°LED 4000 K604 lm8 WCasambi
    • 8 925 046 0198 925 046 019Minispot 2 - 48 Vblacknarrow beam 6°LED 3000 K549 lm9 Won / off
    • 8 925 046 0298 925 046 029Minispot 2 - 48 Vblacklinear vertical 34° / 7°LED 3000 K506 lm8 Won / off
    • 8 925 046 0398 925 046 039Minispot 2 - 48 Vblacklinear horizontal 7° / 34°LED 3000 K506 lm8 Won / off
    • 8 925 046 0498 925 046 049Minispot 2 - 48 Vblackmedium wide beam 23°LED 3000 K546 lm9 Won / off
    • 8 925 046 0598 925 046 059Minispot 2 - 48 Vblackwide beam 59°LED 3000 K573 lm8 Won / off
    • 8 925 046 1198 925 046 119Minispot 2 - 48 Vblacknarrow beam 6°LED 3000 K549 lm9 WDALI
    • 8 925 046 1298 925 046 129Minispot 2 - 48 Vblacklinear vertical 34° / 7°LED 3000 K506 lm8 WDALI
    • 8 925 046 1398 925 046 139Minispot 2 - 48 Vblacklinear horizontal 7° / 34°LED 3000 K506 lm8 WDALI
    • 8 925 046 1498 925 046 149Minispot 2 - 48 Vblackmedium wide beam 23°LED 3000 K546 lm9 WDALI
    • 8 925 046 1598 925 046 159Minispot 2 - 48 Vblackwide beam 59°LED 3000 K573 lm8 WDALI
    • 8 925 046 3198 925 046 319Minispot 2 - 48 Vblacknarrow beam 6°LED 3000 K549 lm9 WCasambi
    • 8 925 046 3298 925 046 329Minispot 2 - 48 Vblacklinear vertical 34° / 7°LED 3000 K506 lm8 WCasambi
    • 8 925 046 3398 925 046 339Minispot 2 - 48 Vblacklinear horizontal 7° / 34°LED 3000 K506 lm8 WCasambi
    • 8 925 046 3498 925 046 349Minispot 2 - 48 Vblackmedium wide beam 23°LED 3000 K546 lm9 WCasambi
    • 8 925 046 3598 925 046 359Minispot 2 - 48 Vblackwide beam 59°LED 3000 K573 lm8 WCasambi
    • 8 925 047 0198 925 047 019Minispot 2 - 48 Vblacknarrow beam 6°LED 2700 K528 lm9 Won / off
    • 8 925 047 0298 925 047 029Minispot 2 - 48 Vblacklinear vertical 34° / 7°LED 2700 K484 lm8 Won / off
    • 8 925 047 0398 925 047 039Minispot 2 - 48 Vblacklinear horizontal 7° / 34°LED 2700 K484 lm8 Won / off
    • 8 925 047 0498 925 047 049Minispot 2 - 48 Vblackmedium wide beam 23°LED 2700 K525 lm9 Won / off
    • 8 925 047 0598 925 047 059Minispot 2 - 48 Vblackwide beam 59°LED 2700 K547 lm8 Won / off
    • 8 925 047 1198 925 047 119Minispot 2 - 48 Vblacknarrow beam 6°LED 2700 K528 lm9 WDALI
    • 8 925 047 1298 925 047 129Minispot 2 - 48 Vblacklinear vertical 34° / 7°LED 2700 K484 lm8 WDALI
    • 8 925 047 1398 925 047 139Minispot 2 - 48 Vblacklinear horizontal 7° / 34°LED 2700 K484 lm8 WDALI
    • 8 925 047 1498 925 047 149Minispot 2 - 48 Vblackmedium wide beam 23°LED 2700 K525 lm9 WDALI
    • 8 925 047 1598 925 047 159Minispot 2 - 48 Vblackwide beam 59°LED 2700 K547 lm8 WDALI
    • 8 925 047 3198 925 047 319Minispot 2 - 48 Vblacknarrow beam 6°LED 2700 K528 lm9 WCasambi
    • 8 925 047 3298 925 047 329Minispot 2 - 48 Vblacklinear vertical 34° / 7°LED 2700 K484 lm8 WCasambi
    • 8 925 047 3398 925 047 339Minispot 2 - 48 Vblacklinear horizontal 7° / 34°LED 2700 K484 lm8 WCasambi
    • 8 925 047 3498 925 047 349Minispot 2 - 48 Vblackmedium wide beam 23°LED 2700 K525 lm9 WCasambi
    • 8 925 047 3598 925 047 359Minispot 2 - 48 Vblackwide beam 59°LED 2700 K547 lm8 WCasambi
    • 8 925 049 3198 925 049 319Minispot 2 - 48 Vblacknarrow beam 10°LED RGBW (3000 K)342 lm8 WCasambi
    • 8 925 049 3298 925 049 329Minispot 2 - 48 Vblacklinear vertical 33° / 16°LED RGBW (3000 K)338 lm8 WCasambi
    • 8 925 049 3398 925 049 339Minispot 2 - 48 Vblacklinear horizontal 16° / 33°LED RGBW (3000 K)338 lm8 WCasambi
    • 8 925 049 3498 925 049 349Minispot 2 - 48 Vblackmedium wide beam 34°LED RGBW (3000 K)342 lm8 WCasambi
    • 8 925 049 3598 925 049 359Minispot 2 - 48 Vblackwide beam 52°LED RGBW (3000 K)341 lm8 WCasambi
    • 8 925 065 0198 925 065 019Minispot 2 - 48 Vwhitenarrow beam 6°LED 4000 K576 lm9 Won / off
    • 8 925 065 0298 925 065 029Minispot 2 - 48 Vwhitelinear vertical 34° / 7°LED 4000 K534 lm8 Won / off
    • 8 925 065 0398 925 065 039Minispot 2 - 48 Vwhitelinear horizontal 7° / 34°LED 4000 K534 lm8 Won / off
    • 8 925 065 0498 925 065 049Minispot 2 - 48 Vwhitemedium wide beam 23°LED 4000 K576 lm9 Won / off
    • 8 925 065 0598 925 065 059Minispot 2 - 48 Vwhitewide beam 59°LED 4000 K604 lm8 Won / off
    • 8 925 065 1198 925 065 119Minispot 2 - 48 Vwhitenarrow beam 6°LED 4000 K576 lm9 WDALI
    • 8 925 065 1298 925 065 129Minispot 2 - 48 Vwhitelinear vertical 34° / 7°LED 4000 K534 lm8 WDALI
    • 8 925 065 1398 925 065 139Minispot 2 - 48 Vwhitelinear horizontal 7° / 34°LED 4000 K534 lm8 WDALI
    • 8 925 065 1498 925 065 149Minispot 2 - 48 Vwhitemedium wide beam 23°LED 4000 K576 lm9 WDALI
    • 8 925 065 1598 925 065 159Minispot 2 - 48 Vwhitewide beam 59°LED 4000 K604 lm8 WDALI
    • 8 925 065 3198 925 065 319Minispot 2 - 48 Vwhitenarrow beam 6°LED 4000 K576 lm9 WCasambi
    • 8 925 065 3298 925 065 329Minispot 2 - 48 Vwhitelinear vertical 34° / 7°LED 4000 K534 lm8 WCasambi
    • 8 925 065 3398 925 065 339Minispot 2 - 48 Vwhitelinear horizontal 7° / 34°LED 4000 K534 lm8 WCasambi
    • 8 925 065 3498 925 065 349Minispot 2 - 48 Vwhitemedium wide beam 23°LED 4000 K576 lm9 WCasambi
    • 8 925 065 3598 925 065 359Minispot 2 - 48 Vwhitewide beam 59°LED 4000 K604 lm8 WCasambi
    • 8 925 066 0198 925 066 019Minispot 2 - 48 Vwhitenarrow beam 6°LED 3000 K549 lm9 Won / off
    • 8 925 066 0298 925 066 029Minispot 2 - 48 Vwhitelinear vertical 34° / 7°LED 3000 K506 lm8 Won / off
    • 8 925 066 0398 925 066 039Minispot 2 - 48 Vwhitelinear horizontal 7° / 34°LED 3000 K506 lm8 Won / off
    • 8 925 066 0498 925 066 049Minispot 2 - 48 Vwhitemedium wide beam 23°LED 3000 K546 lm9 Won / off
    • 8 925 066 0598 925 066 059Minispot 2 - 48 Vwhitewide beam 59°LED 3000 K573 lm8 Won / off
    • 8 925 066 1198 925 066 119Minispot 2 - 48 Vwhitenarrow beam 6°LED 3000 K549 lm9 WDALI
    • 8 925 066 1298 925 066 129Minispot 2 - 48 Vwhitelinear vertical 34° / 7°LED 3000 K506 lm8 WDALI
    • 8 925 066 1398 925 066 139Minispot 2 - 48 Vwhitelinear horizontal 7° / 34°LED 3000 K506 lm8 WDALI
    • 8 925 066 1498 925 066 149Minispot 2 - 48 Vwhitemedium wide beam 23°LED 3000 K546 lm9 WDALI
    • 8 925 066 1598 925 066 159Minispot 2 - 48 Vwhitewide beam 59°LED 3000 K573 lm8 WDALI
    • 8 925 066 3198 925 066 319Minispot 2 - 48 Vwhitenarrow beam 6°LED 3000 K549 lm9 WCasambi
    • 8 925 066 3298 925 066 329Minispot 2 - 48 Vwhitelinear vertical 34° / 7°LED 3000 K506 lm8 WCasambi
    • 8 925 066 3398 925 066 339Minispot 2 - 48 Vwhitelinear horizontal 7° / 34°LED 3000 K506 lm8 WCasambi
    • 8 925 066 3498 925 066 349Minispot 2 - 48 Vwhitemedium wide beam 23°LED 3000 K546 lm9 WCasambi
    • 8 925 066 3598 925 066 359Minispot 2 - 48 Vwhitewide beam 59°LED 3000 K573 lm8 WCasambi
    • 8 925 067 0198 925 067 019Minispot 2 - 48 Vwhitenarrow beam 6°LED 2700 K528 lm9 Won / off
    • 8 925 067 0298 925 067 029Minispot 2 - 48 Vwhitelinear vertical 34° / 7°LED 2700 K484 lm8 Won / off
    • 8 925 067 0398 925 067 039Minispot 2 - 48 Vwhitelinear horizontal 7° / 34°LED 2700 K484 lm8 Won / off
    • 8 925 067 0498 925 067 049Minispot 2 - 48 Vwhitemedium wide beam 23°LED 2700 K525 lm9 Won / off
    • 8 925 067 0598 925 067 059Minispot 2 - 48 Vwhitewide beam 59°LED 2700 K547 lm8 Won / off
    • 8 925 067 1198 925 067 119Minispot 2 - 48 Vwhitenarrow beam 6°LED 2700 K528 lm9 WDALI
    • 8 925 067 1298 925 067 129Minispot 2 - 48 Vwhitelinear vertical 34° / 7°LED 2700 K484 lm8 WDALI
    • 8 925 067 1398 925 067 139Minispot 2 - 48 Vwhitelinear horizontal 7° / 34°LED 2700 K484 lm8 WDALI
    • 8 925 067 1498 925 067 149Minispot 2 - 48 Vwhitemedium wide beam 23°LED 2700 K525 lm9 WDALI
    • 8 925 067 1598 925 067 159Minispot 2 - 48 Vwhitewide beam 59°LED 2700 K547 lm8 WDALI
    • 8 925 067 3198 925 067 319Minispot 2 - 48 Vwhitenarrow beam 6°LED 2700 K528 lm9 WCasambi
    • 8 925 067 3298 925 067 329Minispot 2 - 48 Vwhitelinear vertical 34° / 7°LED 2700 K484 lm8 WCasambi
    • 8 925 067 3398 925 067 339Minispot 2 - 48 Vwhitelinear horizontal 7° / 34°LED 2700 K484 lm8 WCasambi
    • 8 925 067 3498 925 067 349Minispot 2 - 48 Vwhitemedium wide beam 23°LED 2700 K525 lm9 WCasambi
    • 8 925 067 3598 925 067 359Minispot 2 - 48 Vwhitewide beam 59°LED 2700 K547 lm8 WCasambi
    • 8 925 069 3198 925 069 319Minispot 2 - 48 Vwhitenarrow beam 10°LED RGBW (3000 K)342 lm8 WCasambi
    • 8 925 069 3298 925 069 329Minispot 2 - 48 Vwhitelinear vertical 33° / 16°LED RGBW (3000 K)338 lm8 WCasambi
    • 8 925 069 3398 925 069 339Minispot 2 - 48 Vwhitelinear horizontal 16° / 33°LED RGBW (3000 K)338 lm8 WCasambi
    • 8 925 069 3498 925 069 349Minispot 2 - 48 Vwhitemedium wide beam 34°LED RGBW (3000 K)342 lm8 WCasambi
    • 8 925 069 3598 925 069 359Minispot 2 - 48 Vwhitewide beam 52°LED RGBW (3000 K)341 lm8 WCasambi
    • 8 926 055 0198 926 055 019Minispot 2 - 230 Vsilver greynarrow beam 6°LED 4000 K576 lm10 Won / off
    • 8 926 055 0298 926 055 029Minispot 2 - 230 Vsilver greylinear vertical 34° / 7°LED 4000 K534 lm10 Won / off
    • 8 926 055 0398 926 055 039Minispot 2 - 230 Vsilver greylinear horizontal 7° / 34°LED 4000 K584 lm10 Won / off
    • 8 926 055 0498 926 055 049Minispot 2 - 230 Vsilver greymedium wide beam 23°LED 4000 K576 lm10 Won / off
    • 8 926 055 0598 926 055 059Minispot 2 - 230 Vsilver greywide beam 59°LED 4000 K604 lm10 Won / off
    • 8 926 056 0198 926 056 019Minispot 2 - 230 Vsilver greynarrow beam 6°LED 3000 K549 lm10 Won / off
    • 8 926 056 0298 926 056 029Minispot 2 - 230 Vsilver greylinear vertical 34° / 7°LED 3000 K506 lm10 Won / off
    • 8 926 056 0398 926 056 039Minispot 2 - 230 Vsilver greylinear horizontal 7° / 34°LED 3000 K506 lm10 Won / off
    • 8 926 056 0498 926 056 049Minispot 2 - 230 Vsilver greymedium wide beam 23°LED 3000 K546 lm10 Won / off
    • 8 926 056 0598 926 056 059Minispot 2 - 230 Vsilver greywide beam 59°LED 3000 K573 lm10 Won / off
    • 8 926 057 0198 926 057 019Minispot 2 - 230 Vsilver greynarrow beam 6°LED 2700 K528 lm10 Won / off
    • 8 926 057 0298 926 057 029Minispot 2 - 230 Vsilver greylinear vertical 34° / 7°LED 2700 K484 lm10 Won / off
    • 8 926 057 0398 926 057 039Minispot 2 - 230 Vsilver greylinear horizontal 7° / 34°LED 2700 K484 lm10 Won / off
    • 8 926 057 0498 926 057 049Minispot 2 - 230 Vsilver greymedium wide beam 23°LED 2700 K525 lm10 Won / off
    • 8 926 057 0598 926 057 059Minispot 2 - 230 Vsilver greywide beam 59°LED 2700 K547 lm10 Won / off
    • 8 926 045 0198 926 045 019Minispot 2 - 230 Vblacknarrow beam 6°LED 4000 K576 lm10 Won / off
    • 8 926 045 0298 926 045 029Minispot 2 - 230 Vblacklinear vertical 34° / 7°LED 4000 K534 lm10 Won / off
    • 8 926 045 0398 926 045 039Minispot 2 - 230 Vblacklinear horizontal 7° / 34°LED 4000 K584 lm10 Won / off
    • 8 926 045 0498 926 045 049Minispot 2 - 230 Vblackmedium wide beam 23°LED 4000 K576 lm10 Won / off
    • 8 926 045 0598 926 045 059Minispot 2 - 230 Vblackwide beam 59°LED 4000 K604 lm10 Won / off
    • 8 926 046 0198 926 046 019Minispot 2 - 230 Vblacknarrow beam 6°LED 3000 K549 lm10 Won / off
    • 8 926 046 0298 926 046 029Minispot 2 - 230 Vblacklinear vertical 34° / 7°LED 3000 K506 lm10 Won / off
    • 8 926 046 0398 926 046 039Minispot 2 - 230 Vblacklinear horizontal 7° / 34°LED 3000 K506 lm10 Won / off
    • 8 926 046 0498 926 046 049Minispot 2 - 230 Vblackmedium wide beam 23°LED 3000 K546 lm10 Won / off
    • 8 926 046 0598 926 046 059Minispot 2 - 230 Vblackwide beam 59°LED 3000 K573 lm10 Won / off
    • 8 926 047 0198 926 047 019Minispot 2 - 230 Vblacknarrow beam 6°LED 2700 K528 lm10 Won / off
    • 8 926 047 0298 926 047 029Minispot 2 - 230 Vblacklinear vertical 34° / 7°LED 2700 K484 lm10 Won / off
    • 8 926 047 0398 926 047 039Minispot 2 - 230 Vblacklinear horizontal 7° / 34°LED 2700 K484 lm10 Won / off
    • 8 926 047 0498 926 047 049Minispot 2 - 230 Vblackmedium wide beam 23°LED 2700 K525 lm10 Won / off
    • 8 926 047 0598 926 047 059Minispot 2 - 230 Vblackwide beam 59°LED 2700 K547 lm10 Won / off
    • 8 926 065 0198 926 065 019Minispot 2 - 230 Vwhitenarrow beam 6°LED 4000 K576 lm10 Won / off
    • 8 926 065 0298 926 065 029Minispot 2 - 230 Vwhitelinear vertical 34° / 7°LED 4000 K534 lm10 Won / off
    • 8 926 065 0398 926 065 039Minispot 2 - 230 Vwhitelinear horizontal 7° / 34°LED 4000 K584 lm10 Won / off
    • 8 926 065 0498 926 065 049Minispot 2 - 230 Vwhitemedium wide beam 23°LED 4000 K576 lm10 Won / off
    • 8 926 065 0598 926 065 059Minispot 2 - 230 Vwhitewide beam 59°LED 4000 K604 lm10 Won / off
    • 8 926 066 0198 926 066 019Minispot 2 - 230 Vwhitenarrow beam 6°LED 3000 K549 lm10 Won / off
    • 8 926 066 0298 926 066 029Minispot 2 - 230 Vwhitelinear vertical 34° / 7°LED 3000 K506 lm10 Won / off
    • 8 926 066 0398 926 066 039Minispot 2 - 230 Vwhitelinear horizontal 7° / 34°LED 3000 K506 lm10 Won / off
    • 8 926 066 0498 926 066 049Minispot 2 - 230 Vwhitemedium wide beam 23°LED 3000 K546 lm10 Won / off
    • 8 926 066 0598 926 066 059Minispot 2 - 230 Vwhitewide beam 59°LED 3000 K573 lm10 Won / off
    • 8 926 067 0198 926 067 019Minispot 2 - 230 Vwhitenarrow beam 6°LED 2700 K528 lm10 Won / off
    • 8 926 067 0298 926 067 029Minispot 2 - 230 Vwhitelinear vertical 34° / 7°LED 2700 K484 lm10 Won / off
    • 8 926 067 0398 926 067 039Minispot 2 - 230 Vwhitelinear horizontal 7° / 34°LED 2700 K484 lm10 Won / off
    • 8 926 067 0498 926 067 049Minispot 2 - 230 Vwhitemedium wide beam 23°LED 2700 K525 lm10 Won / off
    • 8 926 067 0598 926 067 059Minispot 2 - 230 Vwhitewide beam 59°LED 2700 K547 lm10 Won / off
    • Imprint
    • Data protection declaration
    •
    •
    •
