8 261 065 039

Specification

Colour: white
Fixation: with mounting bracket
Light distribution: linear, horizontal
Beam angle (FWHM): 8° / 37°
Light source: LED 4000 K
Luminous flux: 153 lm
Power: 3 W
Efficiency: 51 lm/W
Control: on / off
Color Rendering Index cri: 80 80
Colour tolerance: max 2 SDCM
Service life: L: 90, B:10

Download

128 0 738 960 | white

220 mm wall arm aluminum, polyester powder coated

128 0 739 960 | white

450 mm wall arm aluminum, polyester powder coated

123 0 470 960 | white

Earth spike stainless steel, for use in landscaped areas

128 0 760 960 | white

pole mount adapter aluminum, polyester powder coated, stainless steel strap, for mounting on poles Ø 60 – 120 mm

120 0 661 940

Expandable tree strap with mounting plate made of polyester fiber for trunk circumference max. 140 cm (different lengths available upon request), with polyester powder coated mounting plate, polyester powder coated

122 0 521 960 | white

Cowl stainless steel, to avoid glare from 3 directions, for mounting in front of floodlight

122 0 164 | black

Honeycomb louvre internal (factory fitted), to avoid glare

122 0 165

Diffusor film + for moderate light diffusion

122 0 166

Diffusor film ++ for medium light diffusion

122 0 167

Diffusor film +++ for strong light diffusion

122 0 168

Prismatic film for linear beam control, vertical

122 0 169

Prismatic film for linear beam control, horizontal

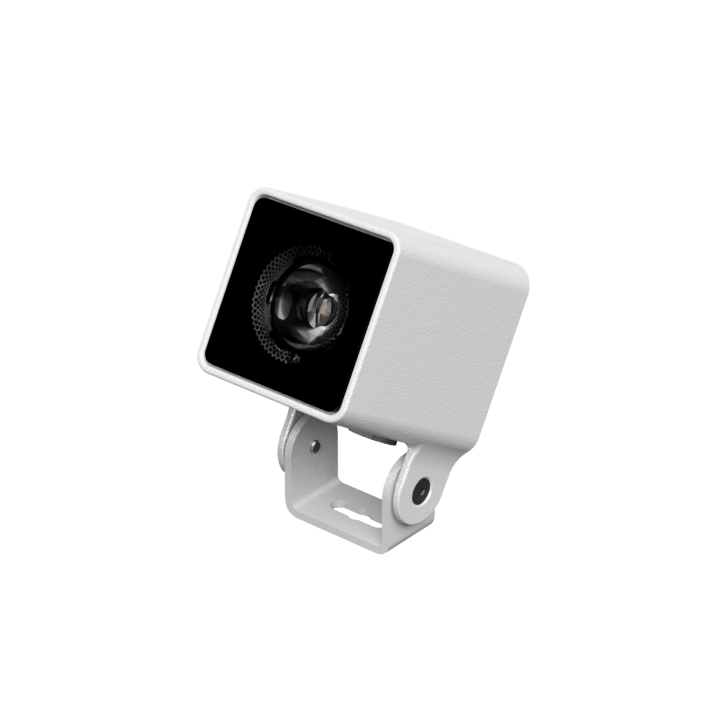

Monocube are floodlights with very compact dimensions and minimalist design that blend discretely into the architecture. The luminaire housings have a smooth surface and are therefore easy to clean and to maintain. Optical film is available as an accessory in order to adapt the light distributions to the exact requirements of a lighting project. Monocube floodlights feature integral LED drivers and can be easily connected to mains voltage power supply. The sizes 3 and 4 can be equipped with Casambi ready drivers and be dimmed via Bluetooth Low Energy technology.
