  • Monoline Façade luminaire with minimalist design

  • Hôtel de Ville Sens
    Vittorio Sparta – Atelier Eclar | Photo: Michel Djaoui

    ×

    8 781 165 089

    Monoline 2

    Housing colour

    silver grey
    black
    white

    Fixation

    with wall bracket
    with wall arm

    Colour temperature

    4000 K
    3000 K

    Light distribution

    Control

    on / off
    DALI

    Options

    2 cable glands
    Specification
    Colour
    white
    Fixation
    with wall bracket

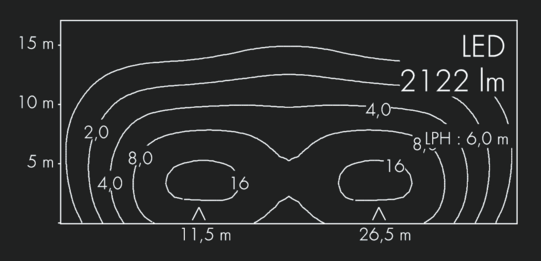

    Light distribution
    asymmetrical
    Light source
    LED 4000 K
    Luminous flux
    2122 lm
    Power
    28 W
    Efficiency
    76 lm/W
    Control
    on / off
    Color Rendering Index cri
    CRI > 80 > 80
    Colour tolerance
    max 3 SDCM
    Service life
    L: 80, B:20
    Download

    Monoline are façade luminaires with minimalist design and very small dimensions. Innovative wall washer optics create uniform light distribution with clearly defined contours. In addition, luminaires with narrow beam or asymmetrical light distributions are available for various different façade lighting applications. Mounting options include a bracket and a wall arm.

    Preselection
    Light source
    Fixation
    Colour
    Light distribution
    Colour temperature
    Control
    Power
    Luminous flux


    Further selection possibilities available in the product specification

    96 Products
    •   Part number Description Colour Light distribution Light source Luminous flux Power
    •
      8 780 155 0098 780 155 009Monoline 1silver greywall washer 34° / 126°LED 4000 K645 lm10 Won / off
    •
      8 780 155 0198 780 155 019Monoline 1silver greynarrow beam 12°LED 4000 K979 lm10 Won / off
    •
      8 780 155 0898 780 155 089Monoline 1silver greyasymmetrical 35°LED 4000 K758 lm10 Won / off
    •
      8 780 155 1098 780 155 109Monoline 1silver greywall washer 34° / 126°LED 4000 K645 lm10 WDALI
    •
      8 780 155 1198 780 155 119Monoline 1silver greynarrow beam 12°LED 4000 K979 lm10 WDALI
    •
      8 780 155 1898 780 155 189Monoline 1silver greyasymmetrical 35°LED 4000 K758 lm10 WDALI
    •
      8 780 156 0098 780 156 009Monoline 1silver greywall washer 34° / 126°LED 3000 K597 lm10 Won / off
    •
      8 780 156 0198 780 156 019Monoline 1silver greynarrow beam 12°LED 3000 K907 lm10 Won / off
    •
      8 780 156 0898 780 156 089Monoline 1silver greyasymmetrical 35°LED 3000 K701 lm10 Won / off
    •
      8 780 156 1098 780 156 109Monoline 1silver greywall washer 34° / 126°LED 3000 K597 lm10 WDALI
    •
      8 780 156 1198 780 156 119Monoline 1silver greynarrow beam 12°LED 3000 K907 lm10 WDALI
    •
      8 780 156 1898 780 156 189Monoline 1silver greyasymmetrical 35°LED 3000 K701 lm10 WDALI
    •
      8 780 145 0098 780 145 009Monoline 1blackwall washer 34° / 126°LED 4000 K645 lm10 Won / off
    •
      8 780 145 0198 780 145 019Monoline 1blacknarrow beam 12°LED 4000 K979 lm10 Won / off
    •
      8 780 145 0898 780 145 089Monoline 1blackasymmetrical 35°LED 4000 K758 lm10 Won / off
    •
      8 780 145 1098 780 145 109Monoline 1blackwall washer 34° / 126°LED 4000 K645 lm10 WDALI
    •
      8 780 145 1198 780 145 119Monoline 1blacknarrow beam 12°LED 4000 K979 lm10 WDALI
    •
      8 780 145 1898 780 145 189Monoline 1blackasymmetrical 35°LED 4000 K758 lm10 WDALI
    •
      8 780 146 0098 780 146 009Monoline 1blackwall washer 34° / 126°LED 3000 K597 lm10 Won / off
    •
      8 780 146 0198 780 146 019Monoline 1blacknarrow beam 12°LED 3000 K907 lm10 Won / off
    •
      8 780 146 0898 780 146 089Monoline 1blackasymmetrical 35°LED 3000 K701 lm10 Won / off
    •
      8 780 146 1098 780 146 109Monoline 1blackwall washer 34° / 126°LED 3000 K597 lm10 WDALI
    •
      8 780 146 1198 780 146 119Monoline 1blacknarrow beam 12°LED 3000 K907 lm10 WDALI
    •
      8 780 146 1898 780 146 189Monoline 1blackasymmetrical 35°LED 3000 K701 lm10 WDALI
    •
      8 780 165 0098 780 165 009Monoline 1whitewall washer 34° / 126°LED 4000 K645 lm10 Won / off
    •
      8 780 165 0198 780 165 019Monoline 1whitenarrow beam 12°LED 4000 K979 lm10 Won / off
    •
      8 780 165 0898 780 165 089Monoline 1whiteasymmetrical 35°LED 4000 K758 lm10 Won / off
    •
      8 780 165 1098 780 165 109Monoline 1whitewall washer 34° / 126°LED 4000 K645 lm10 WDALI
    •
      8 780 165 1198 780 165 119Monoline 1whitenarrow beam 12°LED 4000 K979 lm10 WDALI
    •
      8 780 165 1898 780 165 189Monoline 1whiteasymmetrical 35°LED 4000 K758 lm10 WDALI
    •
      8 780 166 0098 780 166 009Monoline 1whitewall washer 34° / 126°LED 3000 K597 lm10 Won / off
    •
      8 780 166 0198 780 166 019Monoline 1whitenarrow beam 12°LED 3000 K907 lm10 Won / off
    •
      8 780 166 0898 780 166 089Monoline 1whiteasymmetrical 35°LED 3000 K701 lm10 Won / off
    •
      8 780 166 1098 780 166 109Monoline 1whitewall washer 34° / 126°LED 3000 K597 lm10 WDALI
    •
      8 780 166 1198 780 166 119Monoline 1whitenarrow beam 12°LED 3000 K907 lm10 WDALI
    •
      8 780 166 1898 780 166 189Monoline 1whiteasymmetrical 35°LED 3000 K701 lm10 WDALI
    •
      8 780 755 0098 780 755 009Monoline 1silver greywall washer 34° / 126°LED 4000 K645 lm10 Won / off
    •
      8 780 755 1098 780 755 109Monoline 1silver greywall washer 34° / 126°LED 4000 K645 lm10 WDALI
    •
      8 780 756 0098 780 756 009Monoline 1silver greywall washer 34° / 126°LED 3000 K597 lm10 Won / off
    •
      8 780 756 1098 780 756 109Monoline 1silver greywall washer 34° / 126°LED 3000 K597 lm10 WDALI
    •
      8 780 745 0098 780 745 009Monoline 1blackwall washer 34° / 126°LED 4000 K645 lm10 Won / off
    •
      8 780 745 1098 780 745 109Monoline 1blackwall washer 34° / 126°LED 4000 K645 lm10 WDALI
    •
      8 780 746 0098 780 746 009Monoline 1blackwall washer 34° / 126°LED 3000 K597 lm10 Won / off
    •
      8 780 746 1098 780 746 109Monoline 1blackwall washer 34° / 126°LED 3000 K597 lm10 WDALI
    •
      8 780 765 0098 780 765 009Monoline 1whitewall washer 34° / 126°LED 4000 K645 lm10 Won / off
    •
      8 780 765 1098 780 765 109Monoline 1whitewall washer 34° / 126°LED 4000 K645 lm10 WDALI
    •
      8 780 766 0098 780 766 009Monoline 1whitewall washer 34° / 126°LED 3000 K597 lm10 Won / off
    •
      8 780 766 1098 780 766 109Monoline 1whitewall washer 34° / 126°LED 3000 K597 lm10 WDALI
    •
      8 781 155 0098 781 155 009Monoline 2silver greywall washer 32° / 128°LED 4000 K1597 lm28 Won / off
    •
      8 781 155 0198 781 155 019Monoline 2silver greynarrow beam 12°LED 4000 K2741 lm28 Won / off
    •
      8 781 155 0898 781 155 089Monoline 2silver greyasymmetrical 35°LED 4000 K2122 lm28 Won / off
    •
      8 781 155 1098 781 155 109Monoline 2silver greywall washer 32° / 128°LED 4000 K1597 lm28 WDALI
    •
      8 781 155 1198 781 155 119Monoline 2silver greynarrow beam 12°LED 4000 K2741 lm28 WDALI
    •
      8 781 155 1898 781 155 189Monoline 2silver greyasymmetrical 35°LED 4000 K2122 lm28 WDALI
    •
      8 781 156 0098 781 156 009Monoline 2silver greywall washer 32° / 128°LED 3000 K1521 lm28 Won / off
    •
      8 781 156 0198 781 156 019Monoline 2silver greynarrow beam 12°LED 3000 K2539 lm28 Won / off
    •
      8 781 156 0898 781 156 089Monoline 2silver greyasymmetrical 35°LED 3000 K1964 lm28 Won / off
    •
      8 781 156 1098 781 156 109Monoline 2silver greywall washer 32° / 128°LED 3000 K1521 lm28 WDALI
    •
      8 781 156 1198 781 156 119Monoline 2silver greynarrow beam 12°LED 3000 K2539 lm28 WDALI
    •
      8 781 156 1898 781 156 189Monoline 2silver greyasymmetrical 35°LED 3000 K1964 lm28 WDALI
    •
      8 781 145 0098 781 145 009Monoline 2blackwall washer 32° / 128°LED 4000 K1597 lm28 Won / off
    •
      8 781 145 0198 781 145 019Monoline 2blacknarrow beam 12°LED 4000 K2741 lm28 Won / off
    •
      8 781 145 0898 781 145 089Monoline 2blackasymmetrical 35°LED 4000 K2122 lm28 Won / off
    •
      8 781 145 1098 781 145 109Monoline 2blackwall washer 32° / 128°LED 4000 K1597 lm28 WDALI
    •
      8 781 145 1198 781 145 119Monoline 2blacknarrow beam 12°LED 4000 K2741 lm28 WDALI
    •
      8 781 145 1898 781 145 189Monoline 2blackasymmetrical 35°LED 4000 K2122 lm28 WDALI
    •
      8 781 146 0098 781 146 009Monoline 2blackwall washer 32° / 128°LED 3000 K1521 lm28 Won / off
    •
      8 781 146 0198 781 146 019Monoline 2blacknarrow beam 12°LED 3000 K2539 lm28 Won / off
    •
      8 781 146 0898 781 146 089Monoline 2blackasymmetrical 35°LED 3000 K1964 lm28 Won / off
    •
      8 781 146 1098 781 146 109Monoline 2blackwall washer 32° / 128°LED 3000 K1521 lm28 WDALI
    •
      8 781 146 1198 781 146 119Monoline 2blacknarrow beam 12°LED 3000 K2539 lm28 WDALI
    •
      8 781 146 1898 781 146 189Monoline 2blackasymmetrical 35°LED 3000 K1964 lm28 WDALI
    •
      8 781 165 0098 781 165 009Monoline 2whitewall washer 32° / 128°LED 4000 K1597 lm28 Won / off
    •
      8 781 165 0198 781 165 019Monoline 2whitenarrow beam 12°LED 4000 K2741 lm28 Won / off
    •
      8 781 165 0898 781 165 089Monoline 2whiteasymmetrical 35°LED 4000 K2122 lm28 Won / off
    •
      8 781 165 1098 781 165 109Monoline 2whitewall washer 32° / 128°LED 4000 K1597 lm28 WDALI
    •
      8 781 165 1198 781 165 119Monoline 2whitenarrow beam 12°LED 4000 K2741 lm28 WDALI
    •
      8 781 165 1898 781 165 189Monoline 2whiteasymmetrical 35°LED 4000 K2122 lm28 WDALI
    •
      8 781 166 0098 781 166 009Monoline 2whitewall washer 32° / 128°LED 3000 K1521 lm28 Won / off
    •
      8 781 166 0198 781 166 019Monoline 2whitenarrow beam 12°LED 3000 K2539 lm28 Won / off
    •
      8 781 166 0898 781 166 089Monoline 2whiteasymmetrical 35°LED 3000 K1964 lm28 Won / off
    •
      8 781 166 1098 781 166 109Monoline 2whitewall washer 32° / 128°LED 3000 K1521 lm28 WDALI
    •
      8 781 166 1198 781 166 119Monoline 2whitenarrow beam 12°LED 3000 K2539 lm28 WDALI
    •
      8 781 166 1898 781 166 189Monoline 2whiteasymmetrical 35°LED 3000 K1964 lm28 WDALI
    •
      8 781 755 0098 781 755 009Monoline 2silver greywall washer 32° / 128°LED 4000 K1597 lm28 Won / off
    •
      8 781 755 1098 781 755 109Monoline 2silver greywall washer 32° / 128°LED 4000 K1597 lm28 WDALI
    •
      8 781 756 0098 781 756 009Monoline 2silver greywall washer 32° / 128°LED 3000 K1521 lm28 Won / off
    •
      8 781 756 1098 781 756 109Monoline 2silver greywall washer 32° / 128°LED 3000 K1521 lm28 WDALI
    •
      8 781 745 0098 781 745 009Monoline 2blackwall washer 32° / 128°LED 4000 K1597 lm28 Won / off
    •
      8 781 745 1098 781 745 109Monoline 2blackwall washer 32° / 128°LED 4000 K1597 lm28 WDALI
    •
      8 781 746 0098 781 746 009Monoline 2blackwall washer 32° / 128°LED 3000 K1521 lm28 Won / off
    •
      8 781 746 1098 781 746 109Monoline 2blackwall washer 32° / 128°LED 3000 K1521 lm28 WDALI
    •
      8 781 765 0098 781 765 009Monoline 2whitewall washer 32° / 128°LED 4000 K1597 lm28 Won / off
    •
      8 781 765 1098 781 765 109Monoline 2whitewall washer 32° / 128°LED 4000 K1597 lm28 WDALI
    •
      8 781 766 0098 781 766 009Monoline 2whitewall washer 32° / 128°LED 3000 K1521 lm28 Won / off
    •
      8 781 766 1098 781 766 109Monoline 2whitewall washer 32° / 128°LED 3000 K1521 lm28 WDALI
