meyer lighting | Products

Monospot Gobo
Monospot Gobo

8 905 056 249

Monospot Gobo

Housing colour

Fixation

with mounting bracket

Colour temperature

Light distribution

85 mm focal length 150 mm focal length
85 mm focal length
63 mm focal length
45 mm focal length

Control

Specification

Colour: silver grey
Fixation: with mounting bracket
Light distribution: 85 mm focal length

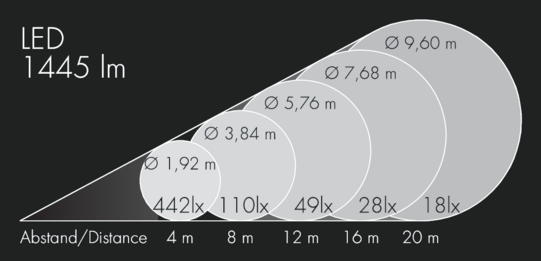

Beam angle (FWHM): 22°
Light source: LED 3000 K
Luminous flux: 1445 lm
Power: 55 W
Efficiency: 26 lm/W
Control: 1-10V
Color Rendering Index cri: CRI > 80 > 80
Colour tolerance: —
Service life: —

Download

119 0 035 950 | silver grey

singe pole mount adapter for Nightspot B gobo projectors, aluminum, for pole diameter 76 - 89 mm

119 0 036 950 | silver grey

double pole mount adapter for Nightspot B gobo projectors, aluminum, for pole diameter 76 - 89 mm

129 0 780

Framer to create sharp edges on 3 or 4 sided images

129 0 489

standard gobo Waves, Ø 50 mm

129 0 490

standard gobo Stars, Ø 50 mm

129 0 491

standard gobo Hash, Ø 50 mm

For the Monospot series there is a gobo projector available with precise optics for sharpe-edged image projections. The optical system can accommodate gobos and colour filters simultaneously. With the help of a framer, the edges of the image can be defined and adapted to the size of the projection surface.The Monospot series thus offers many possibilities for imaginative illumination.

Pole Configurator

Start pole configurator
