  • Nanocube

    ×

    8 308 045 039

    Nanocube

    Housing colour

    silver grey
    black
    white

    Fixation

    with mounting bracket
    wall luminaire
    Surface-mounted downlight

    Colour temperature

    4000 K
    3000 K

    Light distribution

    Specification
    Colour
    black
    Fixation
    with mounting bracket

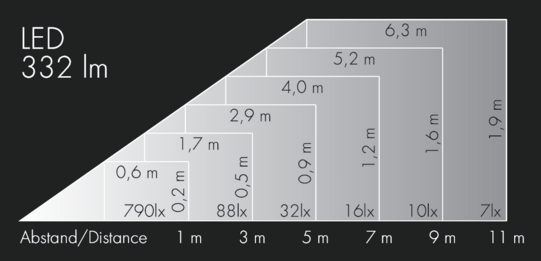

    Light distribution
    linear, horizontal
    Beam angle (FWHM)
    7° / 34°
    Light source
    LED 4000 K
    Luminous flux
    365 lm
    Power
    5 W
    Efficiency
    73 lm/W
    Control
    on / off
    Color Rendering Index cri
    CRI > 80 > 80
    Colour tolerance
    max 3 SDCM
    Service life
    L: 90, B:10
    Download
    Add accessories to your data sheet with a click.

    123 0 467 940 | black

    220 mm wall arm aluminum, polyester powder coated

    123 0 468 940 | black

    450 mm wall arm aluminum, polyester powder coated

    123 0 470 940 | black

    Earth spike stainless steel, for use in landscaped areas

    123 0 490 940 | black

    Cowl stainless steel, to avoid glare from 3 directions

    123 0 510 941 | black

    Carrier frame with safety glass, for colour filters, lenses and plasticfilm

    238 1 222

    Honeycomb louvre internal (factory fitted, not for retro-fitting) to reduce glare
    Download data sheet

    Nanocube is a new exterior luminaire series with minimalist design and compact dimensions. For this product range there is a choice of narrow beam, wide beam and asymmetrical light distributions. The luminaires can be integrated discreetly into the architectural environment and deliver high lumen output despite their miniature size. With integral LED drivers they can be directly connected to mains voltage power supply.

    Preselection
    Light source
    Fixation
    Colour
    Light distribution
    Colour temperature
    Control

    84 Products
    •   Part number Description Colour Light distribution Light source Luminous flux Power
    • 8 308 055 0198 308 055 019Nanocubesilver greynarrow beam 6°LED 4000 K342 lm5 Won / off
    • 8 308 055 0298 308 055 029Nanocubesilver greylinear, vertical 34° / 7°LED 4000 K365 lm5 Won / off
    • 8 308 055 0398 308 055 039Nanocubesilver greylinear, horizontal 7° / 34°LED 4000 K365 lm5 Won / off
    • 8 308 055 0498 308 055 049Nanocubesilver greymedium wide beam 37°LED 4000 K347 lm5 Won / off
    • 8 308 055 0598 308 055 059Nanocubesilver greyaxially symmetrical wide beam 66° / 64°LED 4000 K374 lm5 Won / off
    • 8 308 055 0898 308 055 089Nanocubesilver greyasymmetrical wide beam 28°LED 4000 K248 lm5 Won / off
    • 8 308 056 0198 308 056 019Nanocubesilver greynarrow beam 6°LED 3000 K326 lm5 Won / off
    • 8 308 056 0298 308 056 029Nanocubesilver greylinear, vertical 34° / 7°LED 3000 K348 lm5 Won / off
    • 8 308 056 0398 308 056 039Nanocubesilver greylinear, horizontal 7° / 34°LED 3000 K348 lm5 Won / off
    • 8 308 056 0498 308 056 049Nanocubesilver greymedium wide beam 37°LED 3000 K330 lm5 Won / off
    • 8 308 056 0598 308 056 059Nanocubesilver greyaxially symmetrical wide beam 66° / 64°LED 3000 K356 lm5 Won / off
    • 8 308 056 0898 308 056 089Nanocubesilver greyasymmetrical wide beam 28°LED 3000 K236 lm5 Won / off
    • 8 308 045 0198 308 045 019Nanocubeblacknarrow beam 6°LED 4000 K342 lm5 Won / off
    • 8 308 045 0298 308 045 029Nanocubeblacklinear, vertical 34° / 7°LED 4000 K365 lm5 Won / off
    • 8 308 045 0398 308 045 039Nanocubeblacklinear, horizontal 7° / 34°LED 4000 K365 lm5 Won / off
    • 8 308 045 0498 308 045 049Nanocubeblackmedium wide beam 37°LED 4000 K347 lm5 Won / off
    • 8 308 045 0598 308 045 059Nanocubeblackaxially symmetrical wide beam 66° / 64°LED 4000 K374 lm5 Won / off
    • 8 308 045 0898 308 045 089Nanocubeblackasymmetrical wide beam 28°LED 4000 K248 lm5 Won / off
    • 8 308 046 0198 308 046 019Nanocubeblacknarrow beam 6°LED 3000 K326 lm5 Won / off
    • 8 308 046 0298 308 046 029Nanocubeblacklinear, vertical 34° / 7°LED 3000 K348 lm5 Won / off
    • 8 308 046 0398 308 046 039Nanocubeblacklinear, horizontal 7° / 34°LED 3000 K348 lm5 Won / off
    • 8 308 046 0498 308 046 049Nanocubeblackmedium wide beam 37°LED 3000 K330 lm5 Won / off
    • 8 308 046 0598 308 046 059Nanocubeblackaxially symmetrical wide beam 66° / 64°LED 3000 K356 lm5 Won / off
    • 8 308 046 0898 308 046 089Nanocubeblackasymmetrical wide beam 28°LED 3000 K236 lm5 Won / off
    • 8 308 065 0198 308 065 019Nanocubewhitenarrow beam 6°LED 4000 K342 lm5 Won / off
    • 8 308 065 0298 308 065 029Nanocubewhitelinear, vertical 34° / 7°LED 4000 K365 lm5 Won / off
    • 8 308 065 0398 308 065 039Nanocubewhitelinear, horizontal 7° / 34°LED 4000 K365 lm5 Won / off
    • 8 308 065 0498 308 065 049Nanocubewhitemedium wide beam 37°LED 4000 K347 lm5 Won / off
    • 8 308 065 0598 308 065 059Nanocubewhiteaxially symmetrical wide beam 66° / 64°LED 4000 K374 lm5 Won / off
    • 8 308 065 0898 308 065 089Nanocubewhiteasymmetrical wide beam 28°LED 4000 K248 lm5 Won / off
    • 8 308 066 0198 308 066 019Nanocubewhitenarrow beam 6°LED 3000 K326 lm5 Won / off
    • 8 308 066 0298 308 066 029Nanocubewhitelinear, vertical 34° / 7°LED 3000 K348 lm5 Won / off
    • 8 308 066 0398 308 066 039Nanocubewhitelinear, horizontal 7° / 34°LED 3000 K348 lm5 Won / off
    • 8 308 066 0498 308 066 049Nanocubewhitemedium wide beam 37°LED 3000 K330 lm5 Won / off
    • 8 308 066 0598 308 066 059Nanocubewhiteaxially symmetrical wide beam 66° / 64°LED 3000 K356 lm5 Won / off
    • 8 308 066 0898 308 066 089Nanocubewhiteasymmetrical wide beam 28°LED 3000 K236 lm5 Won / off
    • 8 308 155 0198 308 155 019Nanocubesilver greynarrow beam 6°LED 4000 K342 lm5 Won / off
    • 8 308 155 0498 308 155 049Nanocubesilver greymedium wide beam 37°LED 4000 K347 lm5 Won / off
    • 8 308 155 0598 308 155 059Nanocubesilver greyaxially symmetrical wide beam 66° / 64°LED 4000 K374 lm5 Won / off
    • 8 308 155 0898 308 155 089Nanocubesilver greyasymmetrical wide beam 28°LED 4000 K248 lm5 Won / off
    • 8 308 156 0198 308 156 019Nanocubesilver greynarrow beam 6°LED 3000 K326 lm5 Won / off
    • 8 308 156 0498 308 156 049Nanocubesilver greymedium wide beam 37°LED 3000 K330 lm5 Won / off
    • 8 308 156 0598 308 156 059Nanocubesilver greyaxially symmetrical wide beam 66° / 64°LED 3000 K356 lm5 Won / off
    • 8 308 156 0898 308 156 089Nanocubesilver greyasymmetrical wide beam 28°LED 3000 K236 lm5 Won / off
    • 8 308 145 0198 308 145 019Nanocubeblacknarrow beam 6°LED 4000 K342 lm5 Won / off
    • 8 308 145 0498 308 145 049Nanocubeblackmedium wide beam 37°LED 4000 K347 lm5 Won / off
    • 8 308 145 0598 308 145 059Nanocubeblackaxially symmetrical wide beam 66° / 64°LED 4000 K374 lm5 Won / off
    • 8 308 145 0898 308 145 089Nanocubeblackasymmetrical wide beam 28°LED 4000 K248 lm5 Won / off
    • 8 308 146 0198 308 146 019Nanocubeblacknarrow beam 6°LED 3000 K326 lm5 Won / off
    • 8 308 146 0498 308 146 049Nanocubeblackmedium wide beam 37°LED 3000 K330 lm5 Won / off
    • 8 308 146 0598 308 146 059Nanocubeblackaxially symmetrical wide beam 66° / 64°LED 3000 K356 lm5 Won / off
    • 8 308 146 0898 308 146 089Nanocubeblackasymmetrical wide beam 28°LED 3000 K236 lm5 Won / off
    • 8 308 165 0198 308 165 019Nanocubewhitenarrow beam 6°LED 4000 K342 lm5 Won / off
    • 8 308 165 0498 308 165 049Nanocubewhitemedium wide beam 37°LED 4000 K347 lm5 Won / off
    • 8 308 165 0598 308 165 059Nanocubewhiteaxially symmetrical wide beam 66° / 64°LED 4000 K374 lm5 Won / off
    • 8 308 165 0898 308 165 089Nanocubewhiteasymmetrical wide beam 28°LED 4000 K248 lm5 Won / off
    • 8 308 166 0198 308 166 019Nanocubewhitenarrow beam 6°LED 3000 K326 lm5 Won / off
    • 8 308 166 0498 308 166 049Nanocubewhitemedium wide beam 37°LED 3000 K330 lm5 Won / off
    • 8 308 166 0598 308 166 059Nanocubewhiteaxially symmetrical wide beam 66° / 64°LED 3000 K356 lm5 Won / off
    • 8 308 166 0898 308 166 089Nanocubewhiteasymmetrical wide beam 28°LED 3000 K236 lm5 Won / off
    • 8 308 255 0198 308 255 019Nanocubesilver greynarrow beam 6°LED 4000 K342 lm5 Won / off
    • 8 308 255 0298 308 255 029Nanocubesilver greylinear beam spread 34° / 7°LED 4000 K365 lm5 Won / off
    • 8 308 255 0498 308 255 049Nanocubesilver greymedium wide beam 37°LED 4000 K347 lm5 Won / off
    • 8 308 255 0598 308 255 059Nanocubesilver greyaxially symmetrical wide beam 66° / 64°LED 4000 K374 lm5 Won / off
    • 8 308 256 0198 308 256 019Nanocubesilver greynarrow beam 6°LED 3000 K326 lm5 Won / off
    • 8 308 256 0298 308 256 029Nanocubesilver greylinear beam spread 34° / 7°LED 3000 K348 lm5 Won / off
    • 8 308 256 0498 308 256 049Nanocubesilver greymedium wide beam 37°LED 3000 K330 lm5 Won / off
    • 8 308 256 0598 308 256 059Nanocubesilver greyaxially symmetrical wide beam 66° / 64°LED 3000 K356 lm5 Won / off
    • 8 308 245 0198 308 245 019Nanocubeblacknarrow beam 6°LED 4000 K342 lm5 Won / off
    • 8 308 245 0298 308 245 029Nanocubeblacklinear beam spread 34° / 7°LED 4000 K365 lm5 Won / off
    • 8 308 245 0498 308 245 049Nanocubeblackmedium wide beam 37°LED 4000 K347 lm5 Won / off
    • 8 308 245 0598 308 245 059Nanocubeblackaxially symmetrical wide beam 66° / 64°LED 4000 K374 lm5 Won / off
    • 8 308 246 0198 308 246 019Nanocubeblacknarrow beam 6°LED 3000 K326 lm5 Won / off
    • 8 308 246 0298 308 246 029Nanocubeblacklinear beam spread 34° / 7°LED 3000 K348 lm5 Won / off
    • 8 308 246 0498 308 246 049Nanocubeblackmedium wide beam 37°LED 3000 K330 lm5 Won / off
    • 8 308 246 0598 308 246 059Nanocubeblackaxially symmetrical wide beam 66° / 64°LED 3000 K356 lm5 Won / off
    • 8 308 265 0198 308 265 019Nanocubewhitenarrow beam 6°LED 4000 K342 lm5 Won / off
    • 8 308 265 0298 308 265 029Nanocubewhitelinear beam spread 34° / 7°LED 4000 K365 lm5 Won / off
    • 8 308 265 0498 308 265 049Nanocubewhitemedium wide beam 37°LED 4000 K347 lm5 Won / off
    • 8 308 265 0598 308 265 059Nanocubewhiteaxially symmetrical wide beam 66° / 64°LED 4000 K374 lm5 Won / off
    • 8 308 266 0198 308 266 019Nanocubewhitenarrow beam 6°LED 3000 K326 lm5 Won / off
    • 8 308 266 0298 308 266 029Nanocubewhitelinear beam spread 34° / 7°LED 3000 K348 lm5 Won / off
    • 8 308 266 0498 308 266 049Nanocubewhitemedium wide beam 37°LED 3000 K330 lm5 Won / off
    • 8 308 266 0598 308 266 059Nanocubewhiteaxially symmetrical wide beam 66° / 64°LED 3000 K356 lm5 Won / off
