  • Margaret Bridge Budapest
    Lisys-Project, Budapest

  • Superlight Compact Micro

  • No 1 Martin Place Sydney
    Point of View, Melbourne Sydney

  • Margaret Bridge Budapest
    Lisys-Project, Budapest

  • Superlight Compact Micro

×


8 813 046 059

Superlight Compact Micro

Housing colour

silver grey
black
white

Colour temperature

4000 K
3000 K
RGB

Light distribution

Wide beam Narrow beam
Linear vertical
Linear horizontal
Medium wide beam
Wide beam
  • Narrow beam
  • Linear vertical
  • Linear horizontal
  • Medium wide beam
  • Wide beam

Control

on / off
DALI / 1-10V
DMX

Options

2 cable glands
Specification
Colour
black
Fixation
with mounting bracket
Light distribution
wide beam
Beam angle (FWHM)
33°
Light source
LED 3000 K

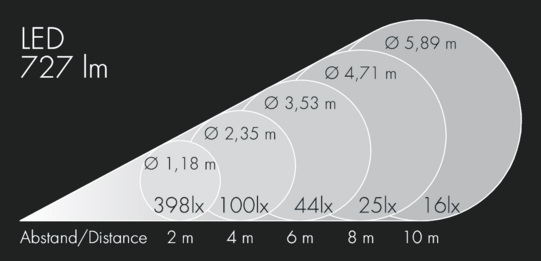

Luminous flux
727 lm
Power
13 W
Efficiency
58 lm/W
Control
on / off
Color Rendering Index cri
CRI > 80 > 80
Colour tolerance
max 2 SDCM
Service life
L: 90, B:10
Download
Add accessories to your data sheet with a click.

128 0 700 940 | black

Wall arm Telescopic wall arm, 300 - 480 mm, aluminum, polyester powder coated

128 0 730 940 | black

Wall arm telescopic 440 - 610 mm, aluminum, polyester powder coated

129 0 390 940 | black

Earth spike stainless steel, polyester powder coated, 350 mm long, for use in landscaped areas

125 0 160 940 | black

Wall bracket 220 mm aluminum, polyester powder coated, allows horizontal adjustment and directional aiming of luminaire

128 0 760 940 | black

pole mount adapter aluminum, polyester powder coated, stainless steel strap, for mounting on poles Ø 60 – 120 mm

128 0 589 940 | black

Cowl stainless steel, to avaoid glare from 3 directions, for mounting on front of floodlight

128 0 588 940 | black

Barn doors aluminum, to avoid glare from 4 directions, fully adjustable, for mounting on front of floodlight

128 0 640 940 | black

Vertical louvre stainless steel, to reduce lateral glare, for retro fitting, not in combination with other accessories

128 0 641 940 | black

Horizontal louvre stainless steel, to reduce lateral glare, for retro fitting, not in combination with other accessories

238 1 206  | black

Honeycomb louvre internal (factory fitted, not for retro-fitting) to reduce glare
Download data sheet

Superlight Compact Micro is range of high performance floodlights with very small dimensions and integral control gear. They can be installed discreetly and are available with various different light distributions. In addition, there is a RGW version for dynamic colour change.

Preselection
Light source
Colour
Light distribution
Colour temperature
Control


Further selection possibilities available in the product specification

75 Products
  •   Part number Description Colour Light distribution Light source Luminous flux Power
  •
    8 813 055 0198 813 055 019Superlight Compact Microsilver greynarrow beam 7°LED 4000 K837 lm13 Won / off
  •
    8 813 055 0298 813 055 029Superlight Compact Microsilver greylinear vertical 46° / 6°LED 4000 K796 lm13 Won / off
  •
    8 813 055 0398 813 055 039Superlight Compact Microsilver greylinear horizontal 6° / 46°LED 4000 K795 lm13 Won / off
  •
    8 813 055 0498 813 055 049Superlight Compact Microsilver greymedium wide beam 20°LED 4000 K820 lm13 Won / off
  •
    8 813 055 0598 813 055 059Superlight Compact Microsilver greywide beam 33°LED 4000 K778 lm13 Won / off
  •
    8 813 055 3198 813 055 319Superlight Compact Microsilver greynarrow beam 7°LED 4000 K837 lm13 WDALI / 1-10V
  •
    8 813 055 3298 813 055 329Superlight Compact Microsilver greylinear vertical 46° / 6°LED 4000 K796 lm13 WDALI / 1-10V
  •
    8 813 055 3398 813 055 339Superlight Compact Microsilver greylinear horizontal 6° / 46°LED 4000 K795 lm13 WDALI / 1-10V
  •
    8 813 055 3498 813 055 349Superlight Compact Microsilver greymedium wide beam 20°LED 4000 K820 lm13 WDALI / 1-10V
  •
    8 813 055 3598 813 055 359Superlight Compact Microsilver greywide beam 33°LED 4000 K778 lm13 WDALI / 1-10V
  •
    8 813 056 0198 813 056 019Superlight Compact Microsilver greynarrow beam 7°LED 3000 K782 lm13 Won / off
  •
    8 813 056 0298 813 056 029Superlight Compact Microsilver greylinear vertical 46° / 6°LED 3000 K744 lm13 Won / off
  •
    8 813 056 0398 813 056 039Superlight Compact Microsilver greylinear horizontal 6° / 46°LED 3000 K743 lm13 Won / off
  •
    8 813 056 0498 813 056 049Superlight Compact Microsilver greymedium wide beam 20°LED 3000 K781 lm13 Won / off
  •
    8 813 056 0598 813 056 059Superlight Compact Microsilver greywide beam 33°LED 3000 K727 lm13 Won / off
  •
    8 813 056 3198 813 056 319Superlight Compact Microsilver greynarrow beam 7°LED 3000 K782 lm13 WDALI / 1-10V
  •
    8 813 056 3298 813 056 329Superlight Compact Microsilver greylinear vertical 46° / 6°LED 3000 K744 lm13 WDALI / 1-10V
  •
    8 813 056 3398 813 056 339Superlight Compact Microsilver greylinear horizontal 6° / 46°LED 3000 K743 lm13 WDALI / 1-10V
  •
    8 813 056 3498 813 056 349Superlight Compact Microsilver greymedium wide beam 20°LED 3000 K781 lm13 WDALI / 1-10V
  •
    8 813 056 3598 813 056 359Superlight Compact Microsilver greywide beam 33°LED 3000 K727 lm13 WDALI / 1-10V
  • 8 813 059 0198 813 059 019Superlight Compact Microsilver greynarrow beam 17°LED RGB470 lm13 WDMX
  • 8 813 059 0298 813 059 029Superlight Compact Microsilver greylinear vertical 18° / 42°LED RGB470 lm13 WDMX
  • 8 813 059 0398 813 059 039Superlight Compact Microsilver greylinear horizontal 42° / 18°LED RGB470 lm13 WDMX
  • 8 813 059 0498 813 059 049Superlight Compact Microsilver greymedium wide beam 27°LED RGB470 lm13 WDMX
  • 8 813 059 0598 813 059 059Superlight Compact Microsilver greywide beam 40°LED RGB470 lm13 WDMX
  •
    8 813 045 0198 813 045 019Superlight Compact Microblacknarrow beam 7°LED 4000 K837 lm13 Won / off
  •
    8 813 045 0298 813 045 029Superlight Compact Microblacklinear vertical 46° / 6°LED 4000 K796 lm13 Won / off
  •
    8 813 045 0398 813 045 039Superlight Compact Microblacklinear horizontal 6° / 46°LED 4000 K795 lm13 Won / off
  •
    8 813 045 0498 813 045 049Superlight Compact Microblackmedium wide beam 20°LED 4000 K820 lm13 Won / off
  •
    8 813 045 0598 813 045 059Superlight Compact Microblackwide beam 33°LED 4000 K778 lm13 Won / off
  •
    8 813 045 3198 813 045 319Superlight Compact Microblacknarrow beam 7°LED 4000 K837 lm13 WDALI / 1-10V
  •
    8 813 045 3298 813 045 329Superlight Compact Microblacklinear vertical 46° / 6°LED 4000 K796 lm13 WDALI / 1-10V
  •
    8 813 045 3398 813 045 339Superlight Compact Microblacklinear horizontal 6° / 46°LED 4000 K795 lm13 WDALI / 1-10V
  •
    8 813 045 3498 813 045 349Superlight Compact Microblackmedium wide beam 20°LED 4000 K820 lm13 WDALI / 1-10V
  •
    8 813 045 3598 813 045 359Superlight Compact Microblackwide beam 33°LED 4000 K778 lm13 WDALI / 1-10V
  •
    8 813 046 0198 813 046 019Superlight Compact Microblacknarrow beam 7°LED 3000 K782 lm13 Won / off
  •
    8 813 046 0298 813 046 029Superlight Compact Microblacklinear vertical 46° / 6°LED 3000 K744 lm13 Won / off
  •
    8 813 046 0398 813 046 039Superlight Compact Microblacklinear horizontal 6° / 46°LED 3000 K743 lm13 Won / off
  •
    8 813 046 0498 813 046 049Superlight Compact Microblackmedium wide beam 20°LED 3000 K781 lm13 Won / off
  •
    8 813 046 0598 813 046 059Superlight Compact Microblackwide beam 33°LED 3000 K727 lm13 Won / off
  •
    8 813 046 3198 813 046 319Superlight Compact Microblacknarrow beam 7°LED 3000 K782 lm13 WDALI / 1-10V
  •
    8 813 046 3298 813 046 329Superlight Compact Microblacklinear vertical 46° / 6°LED 3000 K744 lm13 WDALI / 1-10V
  •
    8 813 046 3398 813 046 339Superlight Compact Microblacklinear horizontal 6° / 46°LED 3000 K743 lm13 WDALI / 1-10V
  •
    8 813 046 3498 813 046 349Superlight Compact Microblackmedium wide beam 20°LED 3000 K781 lm13 WDALI / 1-10V
  •
    8 813 046 3598 813 046 359Superlight Compact Microblackwide beam 33°LED 3000 K727 lm13 WDALI / 1-10V
  • 8 813 049 0198 813 049 019Superlight Compact Microblacknarrow beam 17°LED RGB470 lm13 WDMX
  • 8 813 049 0298 813 049 029Superlight Compact Microblacklinear vertical 18° / 42°LED RGB470 lm13 WDMX
  • 8 813 049 0398 813 049 039Superlight Compact Microblacklinear horizontal 42° / 18°LED RGB470 lm13 WDMX
  • 8 813 049 0498 813 049 049Superlight Compact Microblackmedium wide beam 27°LED RGB470 lm13 WDMX
  • 8 813 049 0598 813 049 059Superlight Compact Microblackwide beam 40°LED RGB470 lm13 WDMX
  •
    8 813 065 0198 813 065 019Superlight Compact Microwhitenarrow beam 7°LED 4000 K837 lm13 Won / off
  •
    8 813 065 0298 813 065 029Superlight Compact Microwhitelinear vertical 46° / 6°LED 4000 K796 lm13 Won / off
  •
    8 813 065 0398 813 065 039Superlight Compact Microwhitelinear horizontal 6° / 46°LED 4000 K795 lm13 Won / off
  •
    8 813 065 0498 813 065 049Superlight Compact Microwhitemedium wide beam 20°LED 4000 K820 lm13 Won / off
  •
    8 813 065 0598 813 065 059Superlight Compact Microwhitewide beam 33°LED 4000 K778 lm13 Won / off
  •
    8 813 065 3198 813 065 319Superlight Compact Microwhitenarrow beam 7°LED 4000 K837 lm13 WDALI / 1-10V
  •
    8 813 065 3298 813 065 329Superlight Compact Microwhitelinear vertical 46° / 6°LED 4000 K796 lm13 WDALI / 1-10V
  •
    8 813 065 3398 813 065 339Superlight Compact Microwhitelinear horizontal 6° / 46°LED 4000 K795 lm13 WDALI / 1-10V
  •
    8 813 065 3498 813 065 349Superlight Compact Microwhitemedium wide beam 20°LED 4000 K820 lm13 WDALI / 1-10V
  •
    8 813 065 3598 813 065 359Superlight Compact Microwhitewide beam 33°LED 4000 K778 lm13 WDALI / 1-10V
  •
    8 813 066 0198 813 066 019Superlight Compact Microwhitenarrow beam 7°LED 3000 K782 lm13 Won / off
  •
    8 813 066 0298 813 066 029Superlight Compact Microwhitelinear vertical 46° / 6°LED 3000 K744 lm13 Won / off
  •
    8 813 066 0398 813 066 039Superlight Compact Microwhitelinear horizontal 6° / 46°LED 3000 K743 lm13 Won / off
  •
    8 813 066 0498 813 066 049Superlight Compact Microwhitemedium wide beam 20°LED 3000 K781 lm13 Won / off
  •
    8 813 066 0598 813 066 059Superlight Compact Microwhitewide beam 33°LED 3000 K727 lm13 Won / off
  •
    8 813 066 3198 813 066 319Superlight Compact Microwhitenarrow beam 7°LED 3000 K782 lm13 WDALI / 1-10V
  •
    8 813 066 3298 813 066 329Superlight Compact Microwhitelinear vertical 46° / 6°LED 3000 K744 lm13 WDALI / 1-10V
  •
    8 813 066 3398 813 066 339Superlight Compact Microwhitelinear horizontal 6° / 46°LED 3000 K743 lm13 WDALI / 1-10V
  •
    8 813 066 3498 813 066 349Superlight Compact Microwhitemedium wide beam 20°LED 3000 K781 lm13 WDALI / 1-10V
  •
    8 813 066 3598 813 066 359Superlight Compact Microwhitewide beam 33°LED 3000 K727 lm13 WDALI / 1-10V
  • 8 813 069 0198 813 069 019Superlight Compact Microwhitenarrow beam 17°LED RGB470 lm13 WDMX
  • 8 813 069 0298 813 069 029Superlight Compact Microwhitelinear vertical 18° / 42°LED RGB470 lm13 WDMX
  • 8 813 069 0398 813 069 039Superlight Compact Microwhitelinear horizontal 42° / 18°LED RGB470 lm13 WDMX
  • 8 813 069 0498 813 069 049Superlight Compact Microwhitemedium wide beam 27°LED RGB470 lm13 WDMX
  • 8 813 069 0598 813 069 059Superlight Compact Microwhitewide beam 40°LED RGB470 lm13 WDMX
