Products

8 821 069 019

Housing colour

silver grey

black

white

Colour temperature

4000 K

3000 K

RGBW (3000 K)

Light distribution

Control

Options

4 cable glands

Specification

Colour: white
Fixation: with mounting bracket
Light distribution: narrow beam

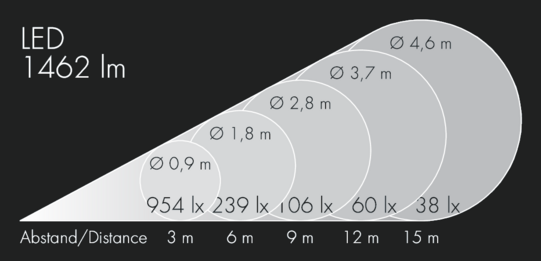

Beam angle (FWHM): 17°
Light source: LED RGBW (3000 K)
Luminous flux: 1462 lm
Power: 47 W
Efficiency: 31 lm/W
Control: DMX
Color Rendering Index cri: —
Colour tolerance: max 2 SDCM
Service life: L: 90, B:10

Download

128 0 700 960 | white

Wall arm Telescopic wall arm, 300 - 480 mm, aluminum, polyester powder coated

128 0 730 960 | white

Wall arm telescopic 440 - 610 mm, aluminum, polyester powder coated

128 0 760 960 | white

pole mount adapter aluminum, polyester powder coated, stainless steel strap, for mounting on poles Ø 60 – 120 mm

129 0 502 960 | white

Earth spike stainless steel, for use in landscaped areas

127 0 189

DMX Controller USB 2.0 connection for programming via PC, incl. software, 512 addressable DMX channels, connection for external power supply, plastic housing, IP20

120 0 623 940

Expandable tree strap with mounting plate made of polyester fiber for trunk circumference max. 140 cm (different lengths available upon request), with polyester powder coated mounting plate, polyester powder coated

128 0 814 960 | white

Cowl stainless steel, to avaoid glare from 3 directions, for mounting on front of floodlight

128 0 815 960 | white

Barn doors aluminum, to avoid glare from 4 directions, for retro-fitting

128 0 816 960 | white

Carrier frame with honeycomb louvre with safety glass, to avoid glare

128 0 816 961 | white

Carrier frame with safety glass, for colour filters, lenses and plasticfilm

238 1 207 | black

Honeycomb louvre internal (factory fitted, not for retro-fitting) to reduce glare

Superlight Nano are extremely compact LED floodlights. The efficient optics create narrow beam, elliptical or wide beam light distributions. The minimalist design allows the floodlights to be integrated into various different architectural environments. With integral control gear they can be connected to mains voltage. Superlight Nano are the smallest and most discreet exterior floodlights on the market. The new powerful Superlight Nano 5 is an ideal lighting tool for façade lighting on tall buildings and for accent lighting from long distances.
