  • Surface-mounted downlights

×


8 320 065 059

Surface-mounted downlight

Housing colour

silver grey
black
white

Colour temperature

4000 K
3000 K

Light distribution

Wide beam Narrow beam
Linear beam spread
Wide beam
Medium wide beam
  • Narrow beam
  • Linear beam spread
  • Wide beam
  • Medium wide beam

Control

on / off
DALI / 1-10V
Specification
Colour
white
Fixation
with wall box

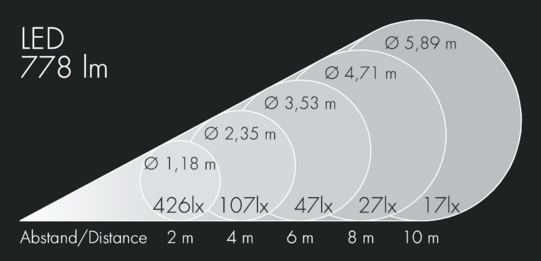

Light distribution
wide beam
Beam angle (FWHM)
33°
Light source
LED 4000 K
Luminous flux
778 lm
Power
13 W
Efficiency
62 lm/W
Control
on / off
Color Rendering Index cri
CRI > 80 > 80
Colour tolerance
max 2 SDCM
Service life
L: 90, B:10
Download
Add accessories to your data sheet with a click.

123 0 311

Dichroic colour filters , yellow internally fitted

123 0 313

Dichroic colour filters , blue internally fitted

123 0 317

Dichroic colour filters , red internally fitted

123 0 318

Dichroic colour filters , green internally fitted

123 0 320 940 | black

Radial louvre internally fitted, to reduce lateral glare
Download data sheet

The LED surface mounted downlights are very compact and shallow in design. The precise optics are available with different light distributions. This allows the products to be used for various different lighting applications and at different mounting heights. The housings are neutral in design and have no visible screws. They can be installed directly on ceilings and canopies.

Preselection
Light source
Colour
Light distribution
Colour temperature
Control
Power
Luminous flux

42 Products
  •   Part number Description Colour Light distribution Light source Luminous flux Power
  • 8 320 055 0198 320 055 019Surface-mounted downlightsilver greynarrow beam 7°LED 4000 K837 lm13 Won / off
  • 8 320 055 0298 320 055 029Surface-mounted downlightsilver greylinear beam spread 46° / 6°LED 4000 K796 lm13 Won / off
  • 8 320 055 0598 320 055 059Surface-mounted downlightsilver greywide beam 33°LED 4000 K778 lm13 Won / off
  • 8 320 055 3198 320 055 319Surface-mounted downlightsilver greynarrow beam 7°LED 4000 K837 lm13 WDALI / 1-10V
  • 8 320 055 3298 320 055 329Surface-mounted downlightsilver greylinear beam spread 46° / 6°LED 4000 K796 lm13 WDALI / 1-10V
  • 8 320 055 3598 320 055 359Surface-mounted downlightsilver greywide beam 33°LED 4000 K778 lm13 WDALI / 1-10V
  • 8 320 056 0198 320 056 019Surface-mounted downlightsilver greynarrow beam 7°LED 3000 K782 lm13 Won / off
  • 8 320 056 0298 320 056 029Surface-mounted downlightsilver greylinear beam spread 46° / 6°LED 3000 K744 lm13 Won / off
  • 8 320 056 0598 320 056 059Surface-mounted downlightsilver greywide beam 33°LED 3000 K727 lm13 Won / off
  • 8 320 056 3198 320 056 319Surface-mounted downlightsilver greynarrow beam 7°LED 3000 K782 lm13 WDALI / 1-10V
  • 8 320 056 3298 320 056 329Surface-mounted downlightsilver greylinear beam spread 46° / 6°LED 3000 K744 lm13 WDALI / 1-10V
  • 8 320 056 3598 320 056 359Surface-mounted downlightsilver greywide beam 33°LED 3000 K727 lm13 WDALI / 1-10V
  • 8 320 045 0198 320 045 019Surface-mounted downlightblacknarrow beam 7°LED 4000 K837 lm13 Won / off
  • 8 320 045 0298 320 045 029Surface-mounted downlightblacklinear beam spread 46° / 6°LED 4000 K796 lm13 Won / off
  • 8 320 045 0598 320 045 059Surface-mounted downlightblackwide beam 33°LED 4000 K778 lm13 Won / off
  • 8 320 045 3198 320 045 319Surface-mounted downlightblacknarrow beam 7°LED 4000 K837 lm13 WDALI / 1-10V
  • 8 320 045 3298 320 045 329Surface-mounted downlightblacklinear beam spread 46° / 6°LED 4000 K796 lm13 WDALI / 1-10V
  • 8 320 045 3598 320 045 359Surface-mounted downlightblackwide beam 33°LED 4000 K778 lm13 WDALI / 1-10V
  • 8 320 046 0198 320 046 019Surface-mounted downlightblacknarrow beam 7°LED 3000 K782 lm13 Won / off
  • 8 320 046 0298 320 046 029Surface-mounted downlightblacklinear beam spread 46° / 6°LED 3000 K744 lm13 Won / off
  • 8 320 046 0598 320 046 059Surface-mounted downlightblackwide beam 33°LED 3000 K727 lm13 Won / off
  • 8 320 046 3198 320 046 319Surface-mounted downlightblacknarrow beam 7°LED 3000 K782 lm13 WDALI / 1-10V
  • 8 320 046 3298 320 046 329Surface-mounted downlightblacklinear beam spread 46° / 6°LED 3000 K744 lm13 WDALI / 1-10V
  • 8 320 046 3598 320 046 359Surface-mounted downlightblackwide beam 33°LED 3000 K727 lm13 WDALI / 1-10V
  • 8 320 065 0198 320 065 019Surface-mounted downlightwhitenarrow beam 7°LED 4000 K837 lm13 Won / off
  • 8 320 065 0298 320 065 029Surface-mounted downlightwhitelinear beam spread 46° / 6°LED 4000 K796 lm13 Won / off
  • 8 320 065 0598 320 065 059Surface-mounted downlightwhitewide beam 33°LED 4000 K778 lm13 Won / off
  • 8 320 065 3198 320 065 319Surface-mounted downlightwhitenarrow beam 7°LED 4000 K837 lm13 WDALI / 1-10V
  • 8 320 065 3298 320 065 329Surface-mounted downlightwhitelinear beam spread 46° / 6°LED 4000 K796 lm13 WDALI / 1-10V
  • 8 320 065 3598 320 065 359Surface-mounted downlightwhitewide beam 33°LED 4000 K778 lm13 WDALI / 1-10V
  • 8 320 066 0198 320 066 019Surface-mounted downlightwhitenarrow beam 7°LED 3000 K782 lm13 Won / off
  • 8 320 066 0298 320 066 029Surface-mounted downlightwhitelinear beam spread 46° / 6°LED 3000 K744 lm13 Won / off
  • 8 320 066 0598 320 066 059Surface-mounted downlightwhitewide beam 33°LED 3000 K727 lm13 Won / off
  • 8 320 066 3198 320 066 319Surface-mounted downlightwhitenarrow beam 7°LED 3000 K782 lm13 WDALI / 1-10V
  • 8 320 066 3298 320 066 329Surface-mounted downlightwhitelinear beam spread 46° / 6°LED 3000 K744 lm13 WDALI / 1-10V
  • 8 320 066 3598 320 066 359Surface-mounted downlightwhitewide beam 33°LED 3000 K727 lm13 WDALI / 1-10V
  • 8 321 055 0598 321 055 059Surface-mounted downlightsilver greymedium wide beam 31°LED 4000 K2003 lm25 Won / off
  • 8 321 056 0598 321 056 059Surface-mounted downlightsilver greymedium wide beam 31°LED 3000 K1908 lm25 Won / off
  • 8 321 045 0598 321 045 059Surface-mounted downlightblackmedium wide beam 31°LED 4000 K2003 lm25 Won / off
  • 8 321 046 0598 321 046 059Surface-mounted downlightblackmedium wide beam 31°LED 3000 K1908 lm25 Won / off
  • 8 321 065 0598 321 065 059Surface-mounted downlightwhitemedium wide beam 31°LED 4000 K2003 lm25 Won / off
  • 8 321 066 0598 321 066 059Surface-mounted downlightwhitemedium wide beam 31°LED 3000 K1908 lm25 Won / off
