  • Unit

    ×

    8 364 165 099

    Unit

    Housing colour

    silver grey
    black
    white

    Colour temperature

    4000 K
    3000 K

    Light distribution

    Control

    on / off
    DALI
    Specification
    Colour
    white
    Fixation
    wall box

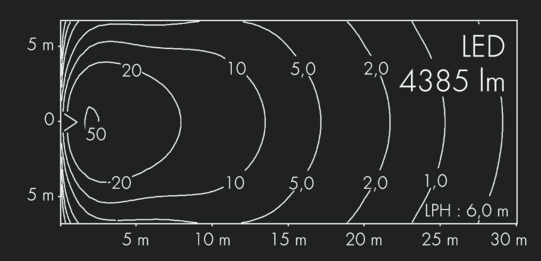

    Light distribution
    asymmetrical beam
    Light source
    LED 4000 K
    Luminous flux
    4385 lm
    Power
    37 W
    Efficiency
    118 lm/W
    Control
    on / off
    Color Rendering Index cri
    CRI > 80 > 80
    Colour tolerance
    max 3 SDCM
    Service life
    L: 80, B:20
    Download
    Add accessories to your data sheet with a click.

    123 0 516 940 | black

    Vertical louvre stainless steel, to reduce lateral glare (internal, factory fitted, no retro-fitting)
    Download data sheet

    Unit is a wall luminaire series that combines versatility with clean design aesthetics. There is a choice of two different reflector options – an asymmetrical distribution for area lighting and a lateral wide beam distribution for uniform illumination of floor areas along façades.

    Preselection
    Light source
    Colour
    Light distribution
    Colour temperature
    Control
    Luminous flux

    24 Products
    •   Part number Description Colour Light distribution Light source Luminous flux Power
    • 8 364 155 0898 364 155 089Unitsilver greylateral wide beam 62° / 142°LED 4000 K3381 lm36 Won / off
    • 8 364 155 0998 364 155 099Unitsilver greyasymmetrical beam 63°LED 4000 K4385 lm37 Won / off
    • 8 364 155 1898 364 155 189Unitsilver greylateral wide beam 62° / 142°LED 4000 K3381 lm36 WDALI
    • 8 364 155 1998 364 155 199Unitsilver greyasymmetrical beam 63°LED 4000 K4385 lm37 WDALI
    • 8 364 156 0898 364 156 089Unitsilver greylateral wide beam 62° / 142°LED 3000 K3219 lm36 Won / off
    • 8 364 156 0998 364 156 099Unitsilver greyasymmetrical beam 63°LED 3000 K4176 lm37 Won / off
    • 8 364 156 1898 364 156 189Unitsilver greylateral wide beam 62° / 142°LED 3000 K3219 lm36 WDALI
    • 8 364 156 1998 364 156 199Unitsilver greyasymmetrical beam 63°LED 3000 K4176 lm37 WDALI
    • 8 364 145 0898 364 145 089Unitblacklateral wide beam 62° / 142°LED 4000 K3381 lm36 Won / off
    • 8 364 145 0998 364 145 099Unitblackasymmetrical beam 63°LED 4000 K4385 lm37 Won / off
    • 8 364 145 1898 364 145 189Unitblacklateral wide beam 62° / 142°LED 4000 K3381 lm36 WDALI
    • 8 364 145 1998 364 145 199Unitblackasymmetrical beam 63°LED 4000 K4385 lm37 WDALI
    • 8 364 146 0898 364 146 089Unitblacklateral wide beam 62° / 142°LED 3000 K3219 lm36 Won / off
    • 8 364 146 0998 364 146 099Unitblackasymmetrical beam 63°LED 3000 K4176 lm37 Won / off
    • 8 364 146 1898 364 146 189Unitblacklateral wide beam 62° / 142°LED 3000 K3219 lm36 WDALI
    • 8 364 146 1998 364 146 199Unitblackasymmetrical beam 63°LED 3000 K4176 lm37 WDALI
    • 8 364 165 0898 364 165 089Unitwhitelateral wide beam 62° / 142°LED 4000 K3381 lm36 Won / off
    • 8 364 165 0998 364 165 099Unitwhiteasymmetrical beam 63°LED 4000 K4385 lm37 Won / off
    • 8 364 165 1898 364 165 189Unitwhitelateral wide beam 62° / 142°LED 4000 K3381 lm36 WDALI
    • 8 364 165 1998 364 165 199Unitwhiteasymmetrical beam 63°LED 4000 K4385 lm37 WDALI
    • 8 364 166 0898 364 166 089Unitwhitelateral wide beam 62° / 142°LED 3000 K3219 lm36 Won / off
    • 8 364 166 0998 364 166 099Unitwhiteasymmetrical beam 63°LED 3000 K4176 lm37 Won / off
    • 8 364 166 1898 364 166 189Unitwhitelateral wide beam 62° / 142°LED 3000 K3219 lm36 WDALI
    • 8 364 166 1998 364 166 199Unitwhiteasymmetrical beam 63°LED 3000 K4176 lm37 WDALI
