8 664 016 019
Uplight 220
Uplight 220
Uplight 280
Uplight 200
Uplight 180 S
Uplight 180
Uplight 135
Uplight 220
Uplight 260
Uplight 250
Uplight 260 S
Uplight 200
Uplight 180 S
Uplight 180
Uplight 135
Uplight 220
Uplight 260
Uplight 250
Uplight 260 S
Fixation

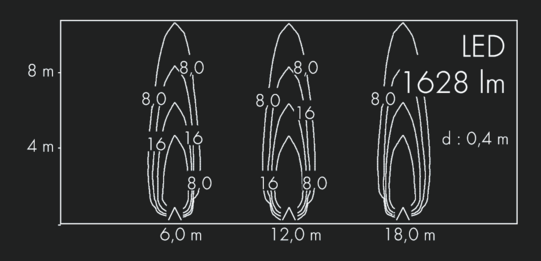

Light distribution
Narrow beam, adjustable
Wall washer, adjustble optics
Narrow beam, adjustable
Medium wide beam, adjustable
Wide beam, adjustable
Narrow beam, adjustable
Medium wide beam, adjustable
Wide beam, adjustable


Specification
- Colour
- black
- Fixation
- for flush mounting
- Light distribution
- narrow beam, adjustable
- Beam angle (FWHM)
- 9°
- Light source
- LED 3000 K
- Luminous flux
- 1628 lm
- Power
- 19 W
- Efficiency
- 86 lm/W
- Control
- on / off
- Color Rendering Index cri
- CRI > 85 > 85
- Colour tolerance
- max 3 SDCM
- Service life
- L: 80, B:20
Download
Add accessories to your data sheet with a click.
Combination of max. 2 internal accessories possible

126 0 338 060
Installation sleeve polypropylene, for luminaire with trim for flush mounting
226 0 161
Cast resin connection box for direct connection to luminaire and for through wiring of 2 buried cables, for luminaires with installation sleeve and cable.
126 0 339 940 | black
Radial louvre internally fitted, to reduce vertical glare
126 0 351 940 | black
Radial louvre internally fitted, to reduce vertical glare
126 0 340 | -
Ribbed glass spreader lense internally fitted, for linear beam control, continuously adjustable through 360°
