  • Upline

  • DSNY 125 New York
    Domingo Gonzales Associates, New York

  • Dockland Hamburg/Germany
    Christian Feck

    ×

    8 650 015 209

    Upline 600

    Colour temperature

    4000 K
    3000 K

    Light distribution

    Control

    on / off
    DALI
    1-10V
    Specification
    Colour
    black
    Fixation
    with overlapping trim

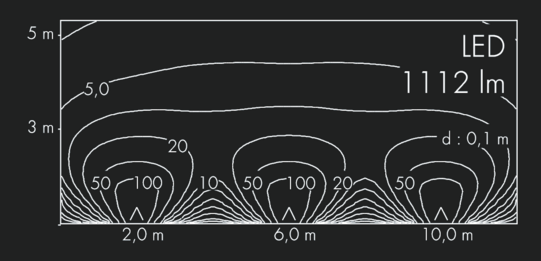

    Light distribution
    wall washer
    Beam angle (FWHM)
    12° / 108°
    Light source
    LED 4000 K
    Luminous flux
    1112 lm
    Power
    15 W
    Efficiency
    74 lm/W
    Control
    1-10V
    Color Rendering Index cri
    CRI > 80 > 80
    Colour tolerance
    max 2 SDCM
    Service life
    L: 90, B:10
    Download
    Add accessories to your data sheet with a click.

    226 0 161

    Cast resin connection box for direct connection to luminaire and for through wiring of 2 buried cables, for luminaires with installation sleeve and cable.

    126 0 350 940 | black

    Louvre stainless steel, to prevent lateral glare
    Download data sheet

    The new series of linear in-ground uplighters is a versatile and slim luminaire for discrete installation. The products are available with wall washer or asymmetrical distribution optics. This allows for optimal results, depending on the distance between the façade and luminaire. Thanks to their very wide beam distribution, the wall washer optics create very little shadow between luminaires. The range is completed with a diffuse wide beam version as an orientation marker.

    Preselection
    Light source
    Light distribution
    Colour temperature
    Control
    Power
    Luminous flux
    Length

    24 Products
    •   Part number Description Colour Light distribution Light source Luminous flux Power
    • 8 612 045 0098 612 045 009Upline linearblackwall washer 10° / 99°LED 4000 K1444 lm26 Won / off
    • 8 612 046 0098 612 046 009Upline linearblackwall washer 10° / 99°LED 3000 K1256 lm26 Won / off
    • 8 612 145 0098 612 145 009Upline linearblackwall washer 10° / 99°LED 4000 K2167 lm40 Won / off
    • 8 612 146 0098 612 146 009Upline linearblackwall washer 10° / 99°LED 3000 K1884 lm40 Won / off
    • 8 612 245 0098 612 245 009Upline linearblackwall washer 10° / 99°LED 4000 K2889 lm53 Won / off
    • 8 612 246 0098 612 246 009Upline linearblackwall washer 10° / 99°LED 3000 K2512 lm53 Won / off
    • 8 650 015 0098 650 015 009Upline 600blackwall washer 12° / 108°LED 4000 K1112 lm15 Won / off
    • 8 650 015 0898 650 015 089Upline 600blackasymmetrical 36°LED 4000 K1107 lm15 Won / off
    • 8 650 015 0998 650 015 099Upline 600blackorientation luminaire 108° / 112°LED 4000 K584 lm19 Won / off
    • 8 650 015 1098 650 015 109Upline 600blackwall washer 12° / 108°LED 4000 K1112 lm15 WDALI
    • 8 650 015 1898 650 015 189Upline 600blackasymmetrical 36°LED 4000 K1107 lm15 WDALI
    • 8 650 015 1998 650 015 199Upline 600blackorientation luminaire 108° / 112°LED 4000 K584 lm19 WDALI
    • 8 650 015 2098 650 015 209Upline 600blackwall washer 12° / 108°LED 4000 K1112 lm15 W1-10V
    • 8 650 015 2898 650 015 289Upline 600blackasymmetrical 36°LED 4000 K1107 lm15 W1-10V
    • 8 650 015 2998 650 015 299Upline 600blackorientation luminaire 108° / 112°LED 4000 K584 lm19 W1-10V
    • 8 650 016 0098 650 016 009Upline 600blackwall washer 12° / 108°LED 3000 K1059 lm15 Won / off
    • 8 650 016 0898 650 016 089Upline 600blackasymmetrical 36°LED 3000 K1054 lm15 Won / off
    • 8 650 016 0998 650 016 099Upline 600blackorientation luminaire 108° / 112°LED 3000 K566 lm19 Won / off
    • 8 650 016 1098 650 016 109Upline 600blackwall washer 12° / 108°LED 3000 K1059 lm15 WDALI
    • 8 650 016 1898 650 016 189Upline 600blackasymmetrical 36°LED 3000 K1054 lm15 WDALI
    • 8 650 016 1998 650 016 199Upline 600blackorientation luminaire 108° / 112°LED 3000 K566 lm19 WDALI
    • 8 650 016 2098 650 016 209Upline 600blackwall washer 12° / 108°LED 3000 K1059 lm15 W1-10V
    • 8 650 016 2898 650 016 289Upline 600blackasymmetrical 36°LED 3000 K1054 lm15 W1-10V
    • 8 650 016 2998 650 016 299Upline 600blackorientation luminaire 108° / 112°LED 3000 K566 lm19 W1-10V
