Monoflood

8 202 265 069

Housing colour

Fixation

with mounting bracket

Colour temperature

Light distribution

Control

Specification

Colour: white
Fixation: Pole luminaire

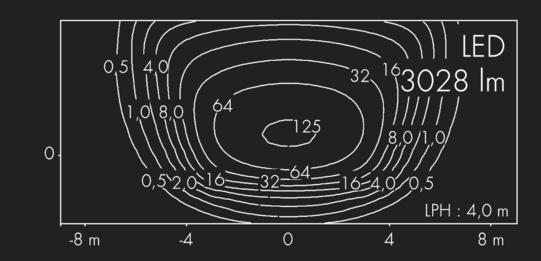

Light distribution: axially symmetrical, narrow beam
Beam angle (FWHM): 55° / 86°
Light source: LED 4000 K
Luminous flux: 3028 lm
Power: 28 W
Efficiency: 108 lm/W
Control: on / off
Color Rendering Index cri: CRI > 85 > 85
Colour tolerance: max 2 SDCM
Service life: L: 90, B:10

Download

122 0 412 | black

Honeycomb louvre internal (factory fitted), to avoid glare

122 0 408

Prismatic glass for diffused light distribution, internal (factory fitted)

122 0 402 960 | white

Cowl stainless steel, to avoid glare from 3 directions, for mounting in front of floodlight

Monoflood is a new floodlight series with precise beam control and minimalist design. The luminaires are available in four sizes and wattages. With a wide choice of different reflectors and lens optics they can be used for various different illumination tasks. The scope of applications includes uniform area lighting and accent lighting of façade details.
