meyer lighting | Products

Monoflood

8 203 255 179

Housing colour

Fixation

with mounting bracket

Colour temperature

Light distribution

Control

Specification

Colour: silver grey
Fixation: Pole luminaire
Light distribution: linear, rotatable

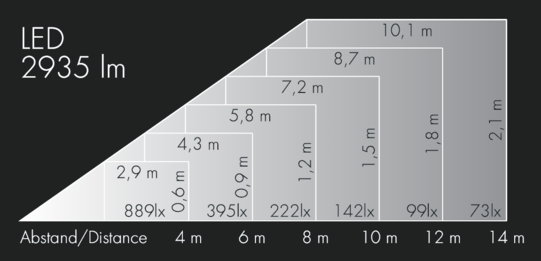

Beam angle (FWHM): 9° / 40°
Light source: LED 4000 K
Luminous flux: 2935 lm
Power: 53 W
Efficiency: 55 lm/W
Control: DALI
Color Rendering Index cri: CRI > 80 > 80
Colour tolerance: max 2 SDCM
Service life: L: 90, B:10

Download

122 0 413 | black

Honeycomb louvre internal (factory fitted), to avoid glare

122 0 409

Prismatic glass for diffused light distribution, internal (factory fitted)

122 0 403 950 | silver grey

Cowl stainless steel, to avoid glare from 3 directions, for mounting in front of floodlight

Monoflood is a new floodlight series with precise beam control and minimalist design. The luminaires are available in four sizes and wattages. With a wide choice of different reflectors and lens optics they can be used for various different illumination tasks. The scope of applications includes uniform area lighting and accent lighting of façade details.
